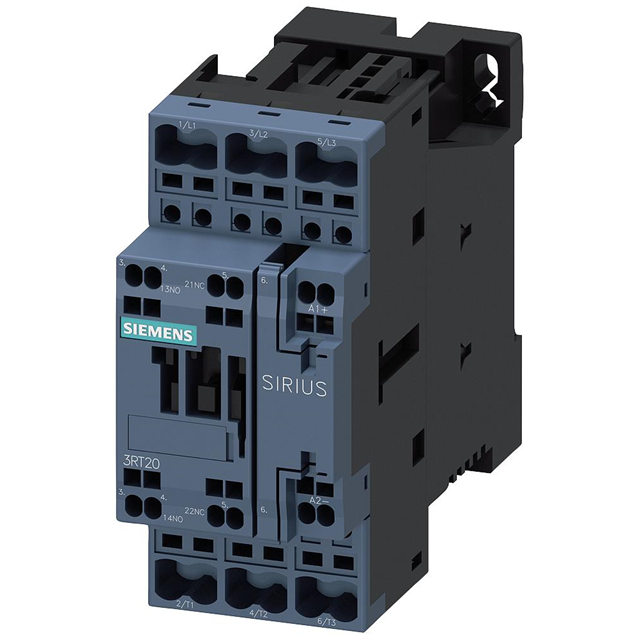

3RT20262NB30
ActiveSiemens
CONTACTOR S0 25A 21-28VUC 1NO/1N
3RT20262NB30
ActiveSiemens
CONTACTOR S0 25A 21-28VUC 1NO/1N
Description
General part information
3RT2026 Series
CONTACTOR S0 25A 21-28VUC 1NO/1N
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT20262NB30 |
|---|---|
| Coil Power | 5.9 W |
| Coil Voltage (Max) | 28 VAC/DC |
| Coil Voltage (Min) | 21 VAC/DC |
| Coil Voltage (Type) | AC, DC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 25 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 80 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 3 pins |
| Release Time | 50 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Spring Terminal |
