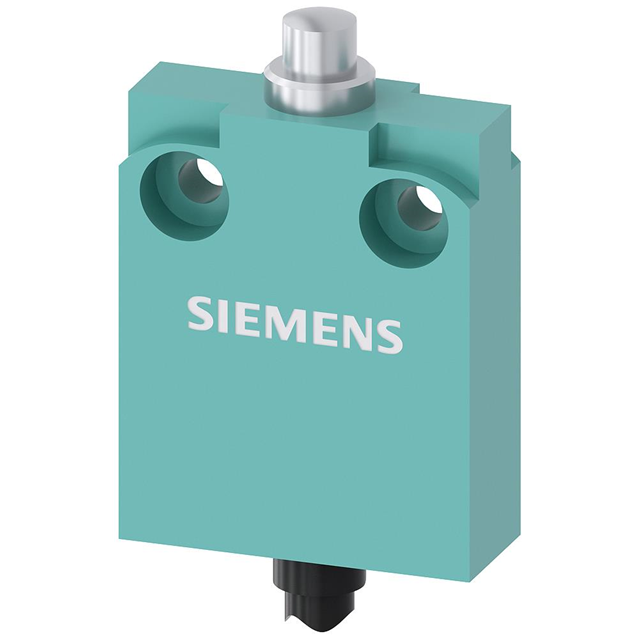

Specification	3SE54230CC201EA2

Actuator Type	Round (Pin Plunger)
Circuit	DPST-NO/NC
Current Rating	550 mA, 6 A
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	2039 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom, Off-Mom
Termination Style	Cable Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V

3SE5423 Series

Part	Voltage Rating - DC	Mounting Type	Switch Function	Circuit	Current Rating	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Mechanical Life (Cycles)	Electrical Life (Cycles)	Actuator Type	Termination Style	Ingress Protection Description	Ingress Protection IP Rating	Operating Force
Siemens 3SE54230CN201EB1	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Side Rotary	Connector	Dust Tight Waterproof	IP67
Siemens 3SE54230CD211EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Plunger	Cable Leads	Dust Tight Waterproof	IP67	1530 gf
Siemens 3SE54230CC201EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Cable Leads	Dust Tight Waterproof	IP67	2039 gf
Siemens 3SE54230CD201EB1	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Plunger	Connector	Dust Tight Waterproof	IP67	1530 gf
Siemens 3SE54230CC211EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Cable Leads	Dust Tight Waterproof	IP67	2039 gf
Siemens 3SE54230CC201EB1	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Connector	Dust Tight Waterproof	IP67	2039 gf
Siemens 3SE54230CN201EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Side Rotary	Cable Leads	Dust Tight Waterproof	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3SE54230CC201EA2 | Datasheet

3SE5 Position and Safety Switches Sales Guide

3SE5 Position and Safety Switches Selection Guide

3SE5 Position and Safety Switches Brochure
