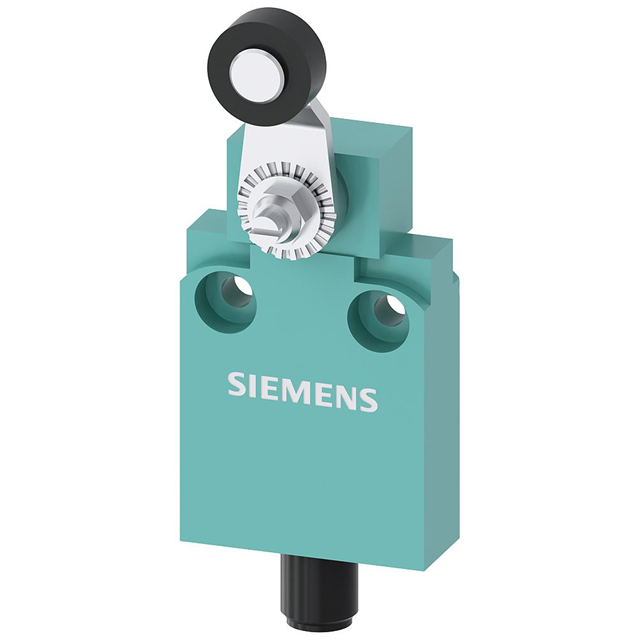

Specification	3SE54230CN201EB1

Actuator Type	Side Rotary, Roller
Circuit	DPST-NO/NC
Current Rating	550 mA, 6 A
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	5000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom, Off-Mom
Termination Style	Connector
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V

3SE5423 Series

Part	Voltage Rating - DC	Mounting Type	Switch Function	Circuit	Current Rating	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Mechanical Life (Cycles)	Electrical Life (Cycles)	Actuator Type	Termination Style	Ingress Protection Description	Ingress Protection IP Rating	Operating Force
Siemens 3SE54230CN201EB1	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Side Rotary	Connector	Dust Tight Waterproof	IP67
Siemens 3SE54230CD211EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Plunger	Cable Leads	Dust Tight Waterproof	IP67	1530 gf
Siemens 3SE54230CC201EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Cable Leads	Dust Tight Waterproof	IP67	2039 gf
Siemens 3SE54230CD201EB1	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Plunger	Connector	Dust Tight Waterproof	IP67	1530 gf
Siemens 3SE54230CC211EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Cable Leads	Dust Tight Waterproof	IP67	2039 gf
Siemens 3SE54230CC201EB1	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Connector	Dust Tight Waterproof	IP67	2039 gf
Siemens 3SE54230CN201EA2	125 V	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Side Rotary	Cable Leads	Dust Tight Waterproof	IP67
