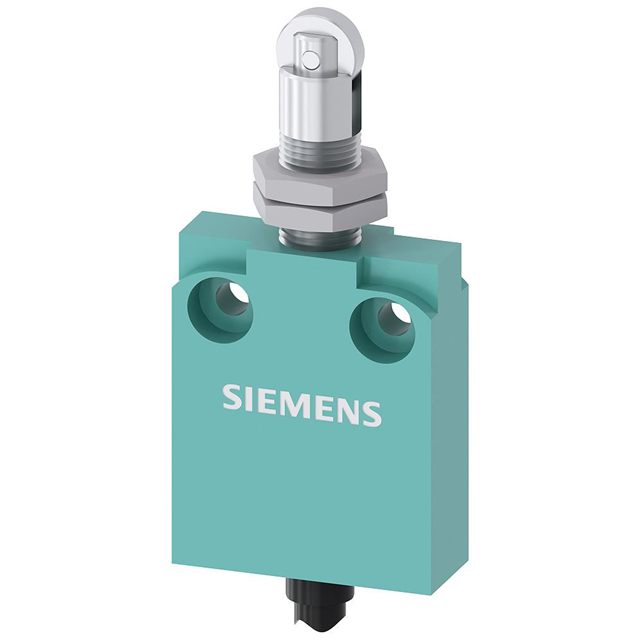

3SE54230CD211EA2

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Search across all available documentation for this part.

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Termination Style	Ingress Protection	Voltage Rating - AC	Circuit	Actuator Type	Electrical Life	Switch Function	Operating Force
Siemens 3SE54230CN201EB1	5000000 Cycles	125 VDC	-25 °C	85 °C	6 A 550 mA	Chassis Mount	Connector	IP67 - Dust Tight Waterproof	125 V	DPST-NO/NC	Roller Side Rotary	100000 Cycles	Off-Mom On-Mom
Siemens 3SE54230CD211EA2	5000000 Cycles	125 VDC	-25 °C	85 °C	6 A 550 mA	Chassis Mount	Cable Leads	IP67 - Dust Tight Waterproof	125 V	DPST-NO/NC	Roller Plunger	100000 Cycles	Off-Mom On-Mom	1530 gf
Siemens 3SE54230CC201EA2	10000000 Cycles	125 VDC	-25 °C	85 °C	6 A 550 mA	Chassis Mount	Cable Leads	IP67 - Dust Tight Waterproof	125 V	DPST-NO/NC	Round (Pin Plunger)	100000 Cycles	Off-Mom On-Mom	2039 gf
Siemens 3SE54230CD201EB1	5000000 Cycles	125 VDC	-25 °C	85 °C	6 A 550 mA	Chassis Mount	Connector	IP67 - Dust Tight Waterproof	125 V	DPST-NO/NC	Roller Plunger	100000 Cycles	Off-Mom On-Mom	1530 gf
Siemens 3SE54230CC201EB1	10000000 Cycles	125 VDC	-25 °C	85 °C	6 A 550 mA	Chassis Mount	Connector	IP67 - Dust Tight Waterproof	125 V	DPST-NO/NC	Round (Pin Plunger)	100000 Cycles	Off-Mom On-Mom	2039 gf
Siemens 3SE54230CN201EA2	5000000 Cycles	125 VDC	-25 °C	85 °C	6 A 550 mA	Chassis Mount	Cable Leads	IP67 - Dust Tight Waterproof	125 V	DPST-NO/NC	Roller Side Rotary	100000 Cycles	Off-Mom On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 256.61
