622-015-368-056
ActiveEDAC Inc.
622 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
622-015-368-056
ActiveEDAC Inc.
622 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 622-015-368-056 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Mounting Brackets, Filter |
| Flange Feature | Female Screwlock (M3), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
622-015 Series
...
| Part | Termination | Connector Type | Features | Backset Spacing | Backset Spacing | Color | Material Flammability Rating | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Number of Rows | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material, Finish | Shell Size, Connector Layout | Contact Material | Contact Finish | Dielectric Material | Number of Positions | Current Rating (Amps) | Connector Style | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Filter Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | Housing/Shell (4-40) | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | |
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Filter Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | Housing/Shell (M3) | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | |
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 4-40 | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | Flash | ||
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Filter Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 2 | Signal | 125 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | Flash | ||
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 30 Áin | 0.76 Ám | 4-40 | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | |
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 30 Áin | 0.76 Ám | 4-40 | 2 | Signal | 125 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | |
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | Female Screwlock (M3) Mating Side | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | |
EDAC Inc. | Solder | Receptacle Female Sockets | Board Lock Filter Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 4-40 | 2 | Signal | 125 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | Flash | ||
EDAC Inc. | Solder | Receptacle Female Sockets | Filter Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 15 µin | 0.38 µm | Female Screwlock (M3) Mating Side | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | |
EDAC Inc. | Solder | Receptacle Female Sockets | Mounting Brackets Shielded | 8.08 mm | 0.318 " | Black | UL94 V-0 | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 2 | Signal | 85 °C | -55 °C | Nickel Plated Steel | 2 | Copper Alloy | Gold | Polyester Thermoplastic | 15 | 3 A | D-Sub | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 4.63 | |
Description
General part information
622-015 Series

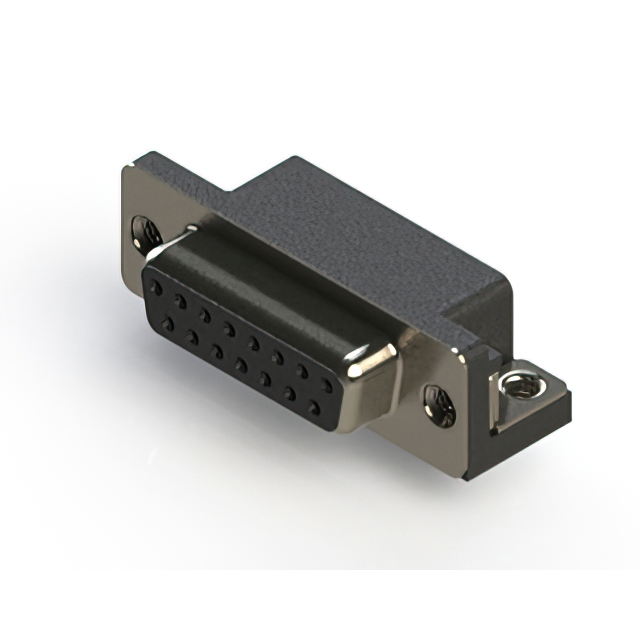

15 Position D-Sub Receptacle, Female Sockets Connector
