Description

General part information

622-015 Series

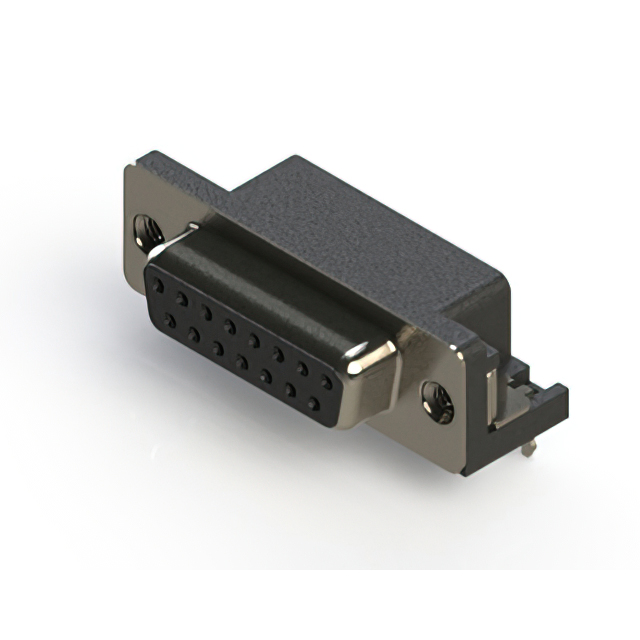

15 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	622-015-368-035

Backset Spacing	0.318 in
Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Filter, Mounting Brackets, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder

622-015 Series

...

Part	Mounting Type	Features	Flange Feature	Connector Style	Number of Positions	Contact Finish	Contact Type	Number of Rows	Shell Material	Finish	Connector Type	Termination	Backset Spacing	Contact Finish Thickness	Material Flammability Rating	Shell Size	Connector Layout	Current Rating (Per Contact)	Contact Material	Dielectric Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 622-015-368-552	Board Edge Right Angle Through Hole	Filter Mounting Brackets Shielded	Housing Shell (4-40)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	15 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	125 °C	-55 °C
EDAC Inc. 622-015-268-035	Board Edge Right Angle Through Hole	Board Lock Filter Mounting Brackets Shielded	Housing Shell (M3)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	0	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	85 °C	-55 °C	Flash	Flash
EDAC Inc. 622-015-368-042	Board Edge Right Angle Through Hole	Board Lock Filter Mounting Brackets Shielded	Housing Shell (4-40)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	15 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	85 °C	-55 °C
EDAC Inc. 622-015-368-035	Board Edge Right Angle Through Hole	Board Lock Filter Mounting Brackets Shielded	Housing Shell (M3)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	15 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	85 °C	-55 °C
EDAC Inc. 622-015-260-040	Board Edge Right Angle Through Hole	Board Lock Mounting Brackets Shielded	Mating Side (4-40)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	0	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	85 °C	-55 °C	Flash	Flash
EDAC Inc. 622-015-268-533	Board Edge Right Angle Through Hole	Board Lock Filter Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	0	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	125 °C	-55 °C	Flash	Flash
EDAC Inc. 622-015-660-040	Board Edge Right Angle Through Hole	Board Lock Mounting Brackets Shielded	Mating Side (4-40)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	30 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	85 °C	-55 °C
EDAC Inc. 622-015-368-016	Board Edge Right Angle Through Hole	Filter Mounting Brackets Shielded	Housing Shell (M3)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	15 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	85 °C	-55 °C
EDAC Inc. 622-015-660-540	Board Edge Right Angle Through Hole	Board Lock Mounting Brackets Shielded	Mating Side (4-40)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	30 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	125 °C	-55 °C
EDAC Inc. 622-015-368-535	Board Edge Right Angle Through Hole	Board Lock Filter Mounting Brackets Shielded	Housing Shell (M3)	D-Sub	15	Gold	Signal	2	Steel	Nickel Plated	Female Sockets Receptacle	Solder	0.318 in	15 µin	UL94 V-0	2	A DA	3 A	Copper Alloy	Polyester Thermoplastic	Black	125 °C	-55 °C
