EDAC Inc.

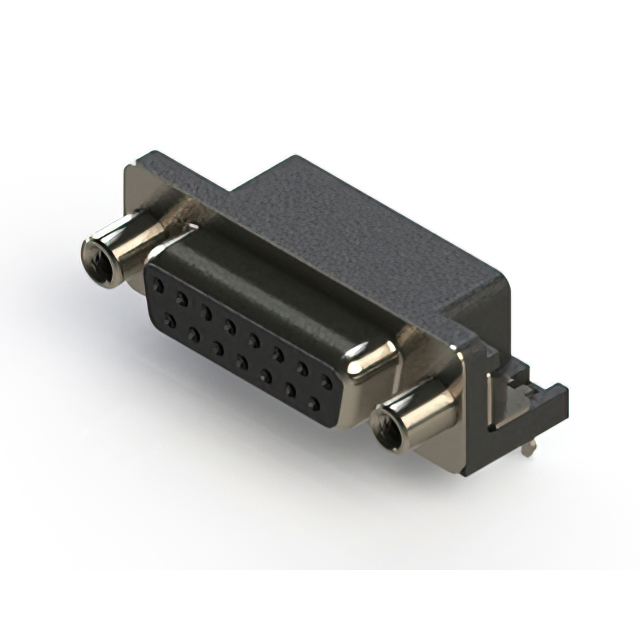

CONN D-SUB RCPT 15POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

622-015-268-530

Active

EDAC Inc.

CONN D-SUB RCPT 15POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-015-268-530

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Mounting Brackets, Filter
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

622-015 Series

...

Part	Termination	Connector Type	Features	Backset Spacing	Backset Spacing	Color	Material Flammability Rating	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Rows	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Shell Size, Connector Layout	Contact Material	Contact Finish	Dielectric Material	Number of Positions	Current Rating (Amps)	Connector Style	Contact Finish Thickness
EDAC Inc. 622-015-368-042	Solder	Receptacle Female Sockets	Board Lock Filter Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole	15 µin	0.38 µm	Housing/Shell (4-40)	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub
EDAC Inc. 622-015-368-035	Solder	Receptacle Female Sockets	Board Lock Filter Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole	15 µin	0.38 µm	Housing/Shell (M3)	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub
EDAC Inc. 622-015-260-040	Solder	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole			4-40	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub	Flash
EDAC Inc. 622-015-268-533	Solder	Receptacle Female Sockets	Board Lock Filter Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole			Female Screwlock (4-40) Mating Side	2	Signal	125 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub	Flash
EDAC Inc. 622-015-660-040	Solder	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole	30 Áin	0.76 Ám	4-40	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub
EDAC Inc. 622-015-660-540	Solder	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole	30 Áin	0.76 Ám	4-40	2	Signal	125 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub
EDAC Inc. 622-015-360-046	Solder	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole	15 µin	0.38 µm	Female Screwlock (M3) Mating Side	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub
EDAC Inc. 622-015-268-530	Solder	Receptacle Female Sockets	Board Lock Filter Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole			4-40	2	Signal	125 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub	Flash
EDAC Inc. 622-015-368-056	Solder	Receptacle Female Sockets	Filter Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole	15 µin	0.38 µm	Female Screwlock (M3) Mating Side	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub
EDAC Inc. 622-015-260-053	Solder	Receptacle Female Sockets	Mounting Brackets Shielded	8.08 mm	0.318 "	Black	UL94 V-0	Board Edge Right Angle Through Hole			Female Screwlock (4-40) Mating Side	2	Signal	85 °C	-55 °C	Nickel Plated Steel	2	Copper Alloy	Gold	Polyester Thermoplastic	15	3 A	D-Sub	Flash
