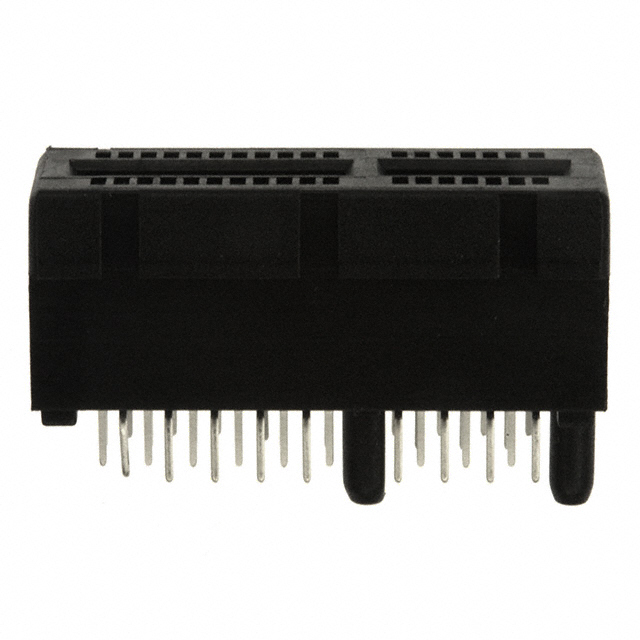

10018783-10100TLF
ActiveAmphenol ICC (FCI)
CONN PCI EXP FMALE 36POS 0.039
Deep-Dive with AI
Search across all available documentation for this part.
10018783-10100TLF
ActiveAmphenol ICC (FCI)
CONN PCI EXP FMALE 36POS 0.039
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10018783-10100TLF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Locking Ramp, Board Guide |
| Gender | Female |
| Material - Insulation | Polyamide (PA), Glass Filled, Nylon |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Dual |
| Termination | Solder, Staggered |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.80 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.55 | |||
| 40 | $ 0.50 | |||
| 80 | $ 0.45 | |||
| 230 | $ 0.43 | |||
| 440 | $ 0.40 | |||
| 945 | $ 0.36 | |||
| 2400 | $ 0.33 | |||
Description
General part information
10018783 Series
36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
