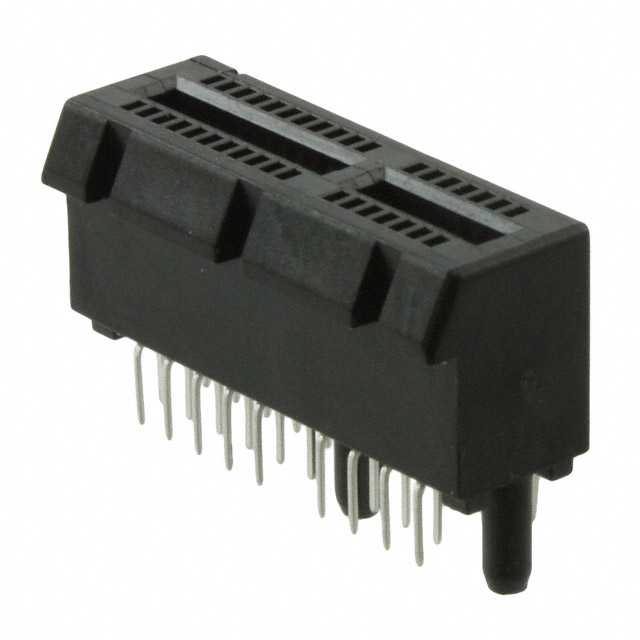

10018783-10010TLF
ActiveAmphenol ICC (FCI)
CONN PCI EXP FMALE 36POS 0.039
Deep-Dive with AI
Search across all available documentation for this part.
10018783-10010TLF
ActiveAmphenol ICC (FCI)
CONN PCI EXP FMALE 36POS 0.039
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10018783-10010TLF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Locking Ramp, Board Guide |
| Gender | Female |
| Material - Insulation | Polyamide (PA), Glass Filled, Nylon |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Dual |
| Termination | Solder, Staggered |
10018783 Series
...
| Part | Contact Type | Contact Finish | Features | Gender | Contact Material | Card Thickness | Card Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Pitch [x] | Pitch [x] | Material - Insulation | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Type | Termination | Mounting Type | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 36 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | 0.76 Ám | 30 Áin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 64 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | Dual | PCI Express™ | Solder Staggered | Through Hole | Flash | 21 | 11 | ||
Amphenol ICC (FCI) | Cantilever | Gold | Board Lock Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 98 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | Dual | PCI Express™ | Solder Staggered | Through Hole | Flash | ||||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 36 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | 0.76 Ám | 30 Áin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 98 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | 0.76 Ám | 30 Áin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 36 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | 0.38 µm | 15 µin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 164 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | 0.76 Ám | 30 Áin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 98 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | 0.76 Ám | 30 Áin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Guide Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 164 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | White | 2 | 0.76 Ám | 30 Áin | Dual | PCI Express™ | Solder Staggered | Through Hole | |||
Amphenol ICC (FCI) | Cantilever | Gold | Board Lock Locking Ramp | Female | Copper Alloy | 0.062 in | 1.57 mm | 85 °C | -55 °C | 98 | 0.039 in | 1 mm | Glass Filled Nylon Polyamide (PA) | Black | 2 | Dual | PCI Express™ | Solder Staggered | Through Hole | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.31 | |
| 10 | $ 1.00 | |||
| 25 | $ 0.89 | |||
| 40 | $ 0.70 | |||
| 80 | $ 0.67 | |||
| 230 | $ 0.65 | |||
| 440 | $ 0.64 | |||
| 945 | $ 0.60 | |||
| 2400 | $ 0.55 | |||
Description
General part information
10018783 Series
36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
