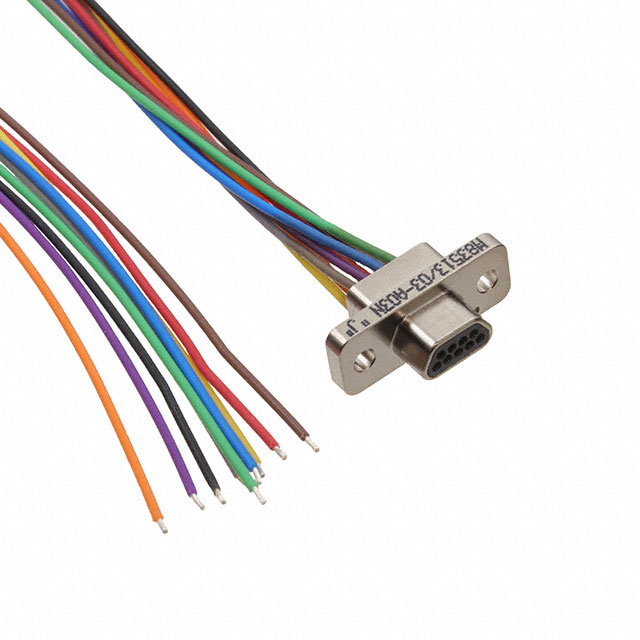

M83513/03-A04C

Active

ITT Cannon, LLC

CABLE ASSY DB09 MULT 914.4MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CABLE ASSY DB09 MULT 914.4MM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Color	2nd Connector	Shielding	1st Connector	Contact Finish	Length [x]	Length [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
ITT Cannon, LLC M83513/03-G12N	D-Type Micro-D	Multiple	Individual Wire Leads	Unshielded	Plug Male Pins	Gold	3 ft	914.4 mm	51
ITT Cannon, LLC M83513/03-D01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm		50 µin	1.27 µm
ITT Cannon, LLC M83513/03-F01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	37	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-A04C	DB9	Individual Multiple	Individual Wire Leads		Plug Male Pins	Gold	3 ft	914.4 mm	9
ITT Cannon, LLC M83513/03-G11N	D-Type Micro-D	Individual Multiple	Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	51	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-B01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	15	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-A01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	9	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-D04N	D-Type Micro-D	Individual Multiple	Individual Wire Leads		Plug Male Pins	Gold	3 ft	914.4 mm
ITT Cannon, LLC M83513/03-D02N	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	3 ft	914.4 mm		50 µin	1.27 µm
ITT Cannon, LLC M83513/03-A11N	D-Type Micro-D	Individual Multiple	Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	9	50 µin	1.27 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly DB9 Multiple, Individual 3.00' (914.40mm) Plug, Male Pins to Individual Wire Leads
