M83513/03-B01C

Active

ITT Cannon, LLC

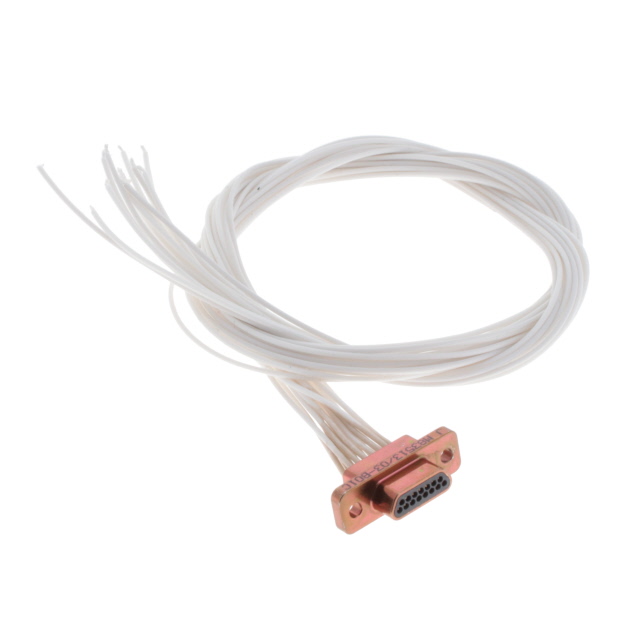

CABLE ASSY D-MIC-D 15P 457.2MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CABLE ASSY D-MIC-D 15P 457.2MM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Color	2nd Connector	Shielding	1st Connector	Contact Finish	Length [x]	Length [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
ITT Cannon, LLC M83513/03-G12N	D-Type Micro-D	Multiple	Individual Wire Leads	Unshielded	Plug Male Pins	Gold	3 ft	914.4 mm	51
ITT Cannon, LLC M83513/03-D01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm		50 µin	1.27 µm
ITT Cannon, LLC M83513/03-F01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	37	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-A04C	DB9	Individual Multiple	Individual Wire Leads		Plug Male Pins	Gold	3 ft	914.4 mm	9
ITT Cannon, LLC M83513/03-G11N	D-Type Micro-D	Individual Multiple	Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	51	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-B01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	15	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-A01C	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	9	50 µin	1.27 µm
ITT Cannon, LLC M83513/03-D04N	D-Type Micro-D	Individual Multiple	Individual Wire Leads		Plug Male Pins	Gold	3 ft	914.4 mm
ITT Cannon, LLC M83513/03-D02N	D-Type Micro-D		Individual Wire Leads	Unshielded	Plug Male Pins	Gold	3 ft	914.4 mm		50 µin	1.27 µm
ITT Cannon, LLC M83513/03-A11N	D-Type Micro-D	Individual Multiple	Individual Wire Leads	Unshielded	Plug Male Pins	Gold	1.5 ft	457.2 mm	9	50 µin	1.27 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D White, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

No documents available
