M83513/03-F01C
ActiveD-SUB MIL SPEC CONNECTORS MICRO D METAL SHELL - 0.050 INCH SPACINGPLUG, CONNECTOR37 CONTACTCRIMP18 INCH LONG, #26AWG PER MIL-W-22759/11-26-9 (ALL WHITE)
M83513/03-F01C
ActiveD-SUB MIL SPEC CONNECTORS MICRO D METAL SHELL - 0.050 INCH SPACINGPLUG, CONNECTOR37 CONTACTCRIMP18 INCH LONG, #26AWG PER MIL-W-22759/11-26-9 (ALL WHITE)
Description
General part information
Micro Series

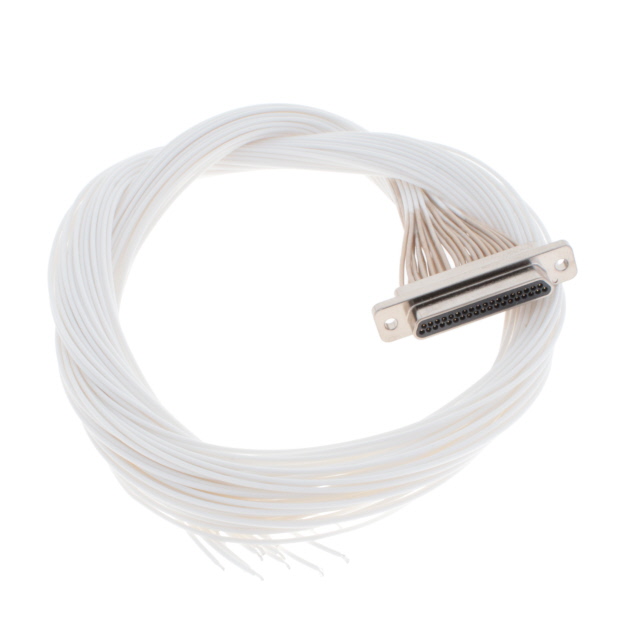

D-Sub Cable Assembly D-Type, Micro-D White, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/03-F01C |
|---|---|
| 1st Connector | Male Pins, Plug |
| 2nd Connector | Individual Wire Leads |
| Color | Individual, White |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Length | 1.5 ft |
| Number of Positions | 37 pos |
| Shielding | Unshielded |
| Type | Micro-D, D-Type |
