20-3518-102
ActiveAries Electronics

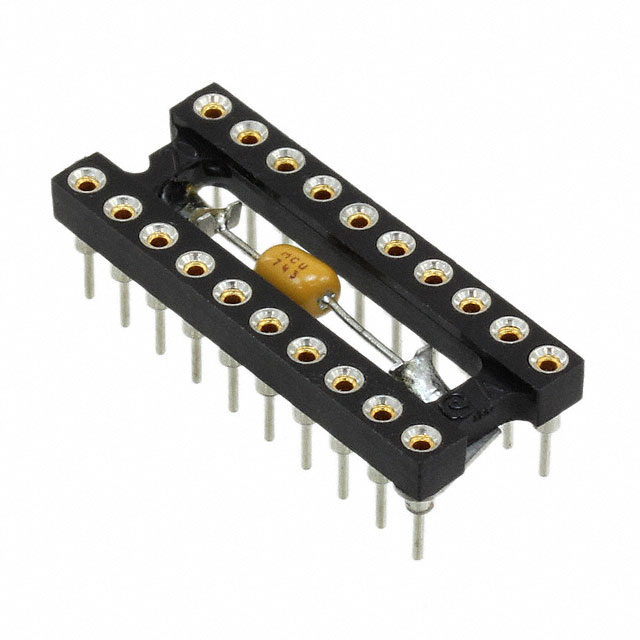

CONN IC DIP SOCKET 20POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20-3518-102
ActiveAries Electronics
CONN IC DIP SOCKET 20POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-3518-102 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 20 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
20-3518 Series
| Part | Features | Contact Material - Post [custom] | Termination | Contact Finish - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Termination Post Length | Termination Post Length | Type | Type | Type | Pitch - Post | Pitch - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Housing Material | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aries Electronics | Open Frame | Brass | Solder | Tin | 3 A | 0.1 in | 2.54 mm | Beryllium Copper | 3.18 mm | 0.125 in | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 20 | Gold | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Through Hole |
Aries Electronics | Open Frame | Brass | Solder | Gold | 3 A | 0.1 in | 2.54 mm | Beryllium Copper | 3.18 mm | 0.125 in | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 10 çin | 0.25 çm | 20 | Gold | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Through Hole |
Aries Electronics | Open Frame | Brass | Solder | Gold | 3 A | 0.1 in | 2.54 mm | Beryllium Copper | 3.18 mm | 0.125 in | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 10 çin | 0.25 çm | 20 | Gold | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Through Hole |
Aries Electronics | Open Frame | Brass | Solder | Tin | 3 A | 0.1 in | 2.54 mm | Beryllium Copper | 3.18 mm | 0.125 in | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 20 | Gold | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Through Hole |
Aries Electronics | Open Frame | Brass | Solder | Tin | 3 A | 0.1 in | 2.54 mm | Beryllium Copper | 3.18 mm | 0.125 in | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 20 | Gold | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Through Hole |
Aries Electronics | Open Frame | Brass | Solder | Gold | 3 A | 0.1 in | 2.54 mm | Beryllium Copper | 3.18 mm | 0.125 in | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 10 çin | 0.25 çm | 20 | Gold | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 91 | $ 5.30 | |
Description
General part information
20-3518 Series
20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
