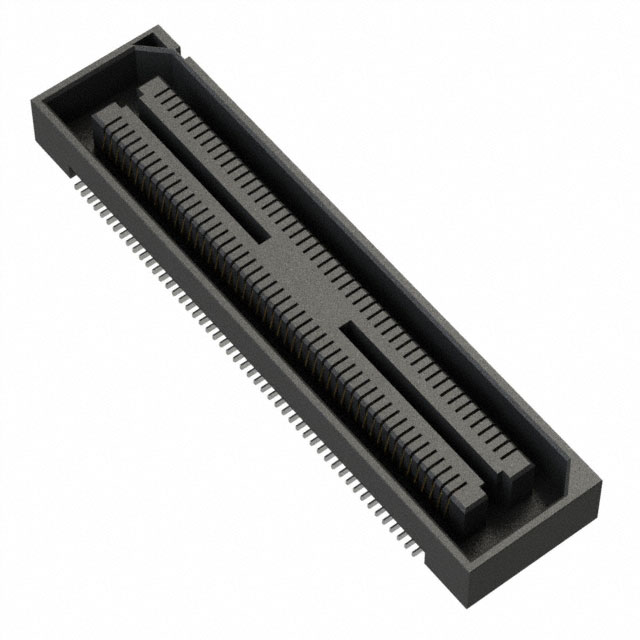

BSH-050-01-H-D

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSH-050-01-H-D

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-050-01-H-D

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BSH-050 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Socket Strip

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Mounting Type	Mated Stacking Heights
Samtec Inc. BSH-050-01-F-D-A-TR	3.25 mm	0.128 in	3 Áin	0.076 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D-LC-TR	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-L-D-TR	3.25 mm	0.128 in	10 Áin	0.25 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-L-D-LC-TR	3.25 mm	0.128 in	10 Áin	0.25 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D-A	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm
Samtec Inc. BSH-120-01-L-D-EM2			10 Áin	0.25 Ám	240	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Board Edge Straddle Mount
Samtec Inc. BSH-050-01-C-D-A	3.25 mm	0.128 in	50 µin	1.27 µm	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm
Samtec Inc. BSH-050-01-F-D	3.25 mm	0.128 in	3 Áin	0.076 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D-A-TR	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 20.77

Description

General part information

BSH-050 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Socket Strip
