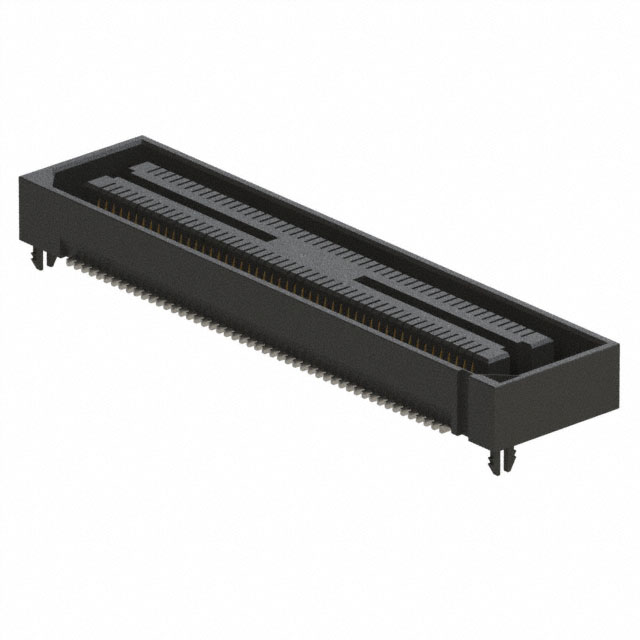

Specification	BSH-050-01-H-D-LC-TR

Connector Type	Center Strip Contacts, Socket
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Lock
Height Above Board	0.128 in
Mated Stacking Height	5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch	0.02 in

BSH-050 Series

Part	Contact Finish	Number of Rows	Connector Type	Pitch	Mounting Type	Number of Positions	Mated Stacking Height	Height Above Board	Contact Finish Thickness	Features
Samtec Inc. BSH-050-01-F-D-A-TR	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	3 µin	Board Guide
Samtec Inc. BSH-050-01-H-D-LC-TR	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	30 µin	Board Lock
Samtec Inc. BSH-050-01-H-D	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	30 µin
Samtec Inc. BSH-050-01-L-D-TR	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	10 Ąin
Samtec Inc. BSH-050-01-L-D	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	10 Ąin
Samtec Inc. BSH-050-01-L-D-LC-TR	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	10 Ąin	Board Lock
Samtec Inc. BSH-050-01-H-D-A	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	30 µin	Board Guide
Samtec Inc. BSH-050-01-C-D-A	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	50 µin	Board Guide
Samtec Inc. BSH-050-01-H-D-A-TR	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	30 µin	Board Guide
Samtec Inc. BSH-050-01-L-D-LC	Gold	2	Center Strip Contacts Socket	0.02 in	Surface Mount	100	5 mm	0.128 in	10 Ąin	Board Lock
