BSH-050-01-F-D

Active

Samtec Inc.

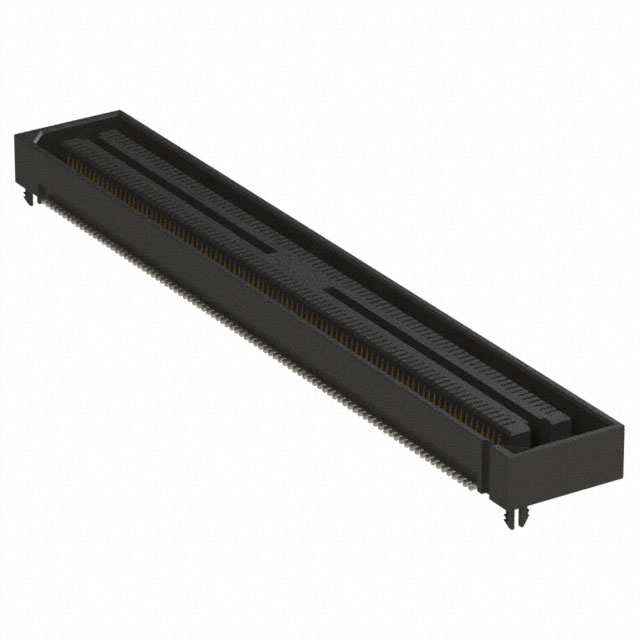

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSH-050-01-F-D

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-050-01-F-D

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BSH-050 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Socket Strip

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Mounting Type	Mated Stacking Heights
Samtec Inc. BSH-050-01-F-D-A-TR	3.25 mm	0.128 in	3 Áin	0.076 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D-LC-TR	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-L-D-TR	3.25 mm	0.128 in	10 Áin	0.25 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-L-D-LC-TR	3.25 mm	0.128 in	10 Áin	0.25 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D-A	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm
Samtec Inc. BSH-120-01-L-D-EM2			10 Áin	0.25 Ám	240	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Board Edge Straddle Mount
Samtec Inc. BSH-050-01-C-D-A	3.25 mm	0.128 in	50 µin	1.27 µm	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm
Samtec Inc. BSH-050-01-F-D	3.25 mm	0.128 in	3 Áin	0.076 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold		Surface Mount	5 mm
Samtec Inc. BSH-050-01-H-D-A-TR	3.25 mm	0.128 in	30 Áin	0.76 Ám	100	Socket Center Strip Contacts	0.5 mm	0.02 in	2	Gold	Board Guide	Surface Mount	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.62

Description

General part information

BSH-050 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Socket Strip

Documents

Technical documentation and resources
