BSH-030-01-L-D

Active

Samtec Inc.

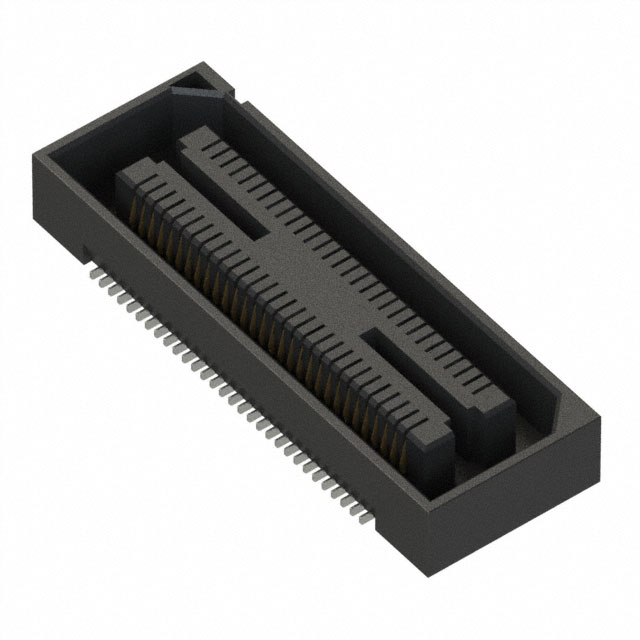

CONN SOCKET 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBSH Series Other Related Documents 03 Datasheet +2

BSH-030-01-L-D

Active

Samtec Inc.

CONN SOCKET 60POS SMD GOLD

Deep-Dive with AI

DocumentsBSH Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-030-01-L-D

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BSH-030 Series

Part	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Features
Samtec Inc. BSH-030-01-H-D-EM2	2	60	0.5 mm	0.02 in	Gold	0.76 Ám	30 Áin	Board Edge Straddle Mount	Socket Center Strip Contacts
Samtec Inc. BSH-030-01-L-D-LC-TR	2	60	0.5 mm	0.02 in	Gold	0.25 Ám	10 Áin	Surface Mount	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm
Samtec Inc. BSH-030-01-F-D-LC	2	60	0.5 mm	0.02 in	Gold	0.076 Ám	3 Áin	Surface Mount	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm
Samtec Inc. BSH-030-01-L-D	2	60	0.5 mm	0.02 in	Gold	0.25 Ám	10 Áin	Surface Mount	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm
Samtec Inc. BSH-030-01-F-D-RA-WT	2	60	0.5 mm	0.02 in	Gold	0.076 Ám	3 Áin	Surface Mount Right Angle	Socket Center Strip Contacts				0.285 in	7.24 mm	Solder Retention
Samtec Inc. BSH-030-01-L-D-LC	2	60	0.5 mm	0.02 in	Gold	0.25 Ám	10 Áin	Surface Mount	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm
Samtec Inc. BSH-030-01-F-D-RA-WT-GP	2	60	0.5 mm	0.02 in	Gold	0.076 Ám	3 Áin	Surface Mount Right Angle	Socket Center Strip Contacts				0.285 in	7.24 mm	Board Guide Solder Retention
Samtec Inc. BSH-030-01-F-D-LC-TR	2	60	0.5 mm	0.02 in	Gold	0.076 Ám	3 Áin	Surface Mount	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm
Samtec Inc. BSH-030-01-L-D-A-TR	2	60	0.5 mm	0.02 in	Gold	0.25 Ám	10 Áin	Surface Mount	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm			Board Guide
Samtec Inc. BSH-030-01-F-D-EM2	2	60	0.5 mm	0.02 in	Gold	0.076 Ám	3 Áin	Board Edge Straddle Mount	Socket Center Strip Contacts
