629W2WK2240-4N3

Active

EDAC Inc.

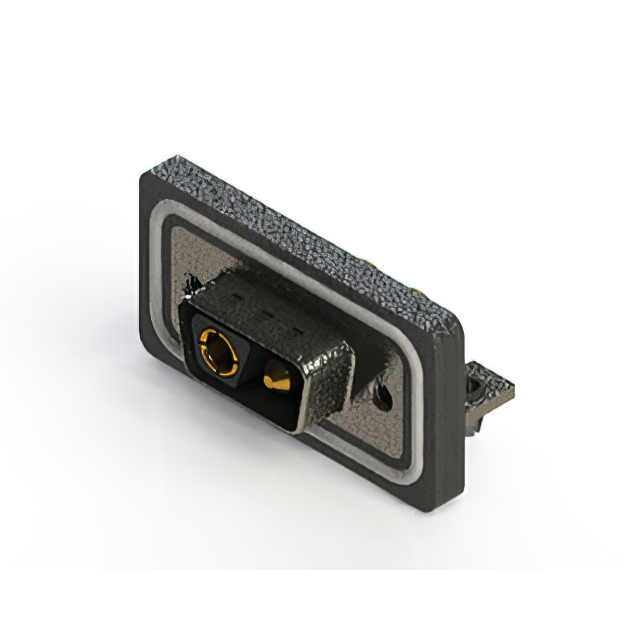

CONN D-SUB PLUG 2POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W2WK2240-4N3

Active

EDAC Inc.

CONN D-SUB PLUG 2POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W2WK2240-4N3

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

629W2W Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions	Color	Connector Style	Shell Size, Connector Layout	Dielectric Material	Shell Material, Finish	Features	Contact Material	Contact Finish	Material Flammability Rating	Termination	Mounting Type	Ingress Protection	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Type	Connector Type	Voltage Rating	Contact Finish Thickness
EDAC Inc. 629W2WK2340-1NB	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	10 A	15 µin	0.38 µm	Housing/Shell (M3)	Power	Female Sockets Male Pins Plug	125 VDC
EDAC Inc. 629W2WK2640-1NB	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	10 A	30 Áin	0.76 Ám	Housing/Shell (M3)	Power	Female Sockets Male Pins Plug	125 VDC
EDAC Inc. 629W2W2-340-3NB	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	30 A	15 µin	0.38 µm	Housing/Shell (M3)	Power	Male Pins Plug	125 VDC
EDAC Inc. 629W2W2-340-4NA	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Grounding Indents Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	40 A	15 µin	0.38 µm	Housing/Shell (M3)	Power	Male Pins Plug	125 VDC
EDAC Inc. 629W2WK2640-4NB	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	40 A	30 Áin	0.76 Ám	Housing/Shell (M3)	Power	Female Sockets Male Pins Plug	125 VDC
EDAC Inc. 629W2W2-340-2NB	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	20 A	15 µin	0.38 µm	Housing/Shell (M3)	Power	Male Pins Plug	125 VDC
EDAC Inc. 629W2WK2240-4N3	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	40 A			Housing/Shell (4-40)	Power	Female Sockets Male Pins Plug	125 VDC	Flash
EDAC Inc. 629W2W2-140-4N4	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	40 A	5 µin	0.127 µm	Housing/Shell (4-40)	Power	Male Pins Plug	125 VDC
EDAC Inc. 629W2W2-340-3N3	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	30 A	15 µin	0.38 µm	Housing/Shell (4-40)	Power	Male Pins Plug	125 VDC
EDAC Inc. 629W2W2-340-3NA	-55 °C	125 °C	1	2	Black	Combo D-Sub	1 (DE E) 2V2 2W2 2W2C 2WK2	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Grounding Indents Shielded	Copper Alloy	Gold	UL94 V-0	Solder	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	30 A	15 µin	0.38 µm	Housing/Shell (M3)	Power	Male Pins Plug	125 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.60

Description

General part information

629W2W Series

2 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
