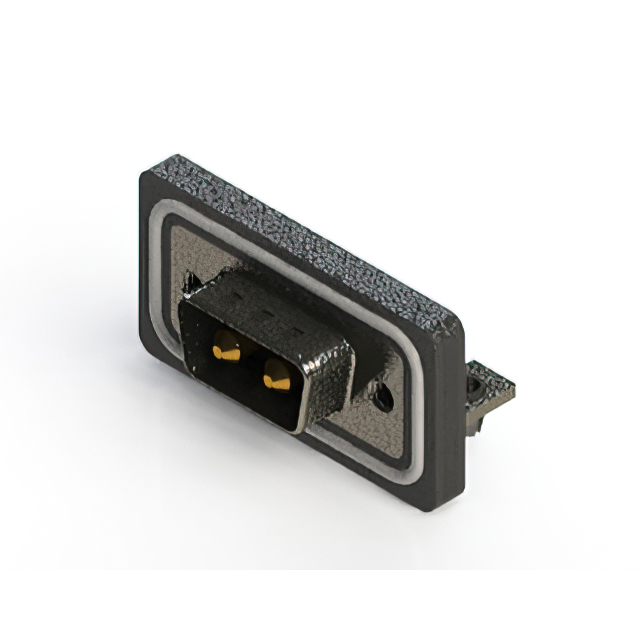

Specification	629W2W2-340-3NB

Color	Black
Connector Layout	2WK2, 2W2C, DE, E
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	30 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Mounting Brackets, Filter, Board Lock, Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	2W2, 2V2
Position Types	Power
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	125 V

629W2W Series

...

Part	Shell Material	Finish	Flange Feature	Termination	Features	Contact Finish Thickness	Contact Type	Connector Style	Number of Rows	Shell Size	Connector Layout	Part Code	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Connector Type	Mounting Type	Number of Positions	Position Types	Contact Finish	Color	Contact Material	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 629W2WK2340-1NB	Steel	Nickel Plated	Housing Shell (M3)	Solder	Board Lock Filter Grounding Indents Mounting Brackets Shielded	15 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	10 A	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2W2-340-3N2	Steel	Nickel Plated	Housing Shell (4-40)	Solder	Grounding Indents Shielded	15 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	30 A	Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2WK2640-1NB	Steel	Nickel Plated	Housing Shell (M3)	Solder	Board Lock Filter Grounding Indents Mounting Brackets Shielded	30 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	10 A	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2W2-340-3NB	Steel	Nickel Plated	Housing Shell (M3)	Solder	Board Lock Filter Grounding Indents Mounting Brackets Shielded	15 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	30 A	Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2W2-340-4NA	Steel	Nickel Plated	Housing Shell (M3)	Solder	Grounding Indents Shielded	15 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	40 A	Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2WK2640-4NB	Steel	Nickel Plated	Housing Shell (M3)	Solder	Board Lock Filter Grounding Indents Mounting Brackets Shielded	30 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	40 A	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2W2-340-2NB	Steel	Nickel Plated	Housing Shell (M3)	Solder	Board Lock Filter Grounding Indents Mounting Brackets Shielded	15 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	20 A	Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2WK2240-4N3	Steel	Nickel Plated	Housing Shell (4-40)	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	0	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	40 A	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Flash	Flash
EDAC Inc. 629W2W2-140-4N4	Steel	Nickel Plated	Housing Shell (4-40)	Solder	Grounding Indents Mounting Brackets Shielded	5 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	40 A	Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 629W2W2-340-3N3	Steel	Nickel Plated	Housing Shell (4-40)	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	15 µin	Power	Combo D-Sub	1	1	2W2C 2WK2 DE E	2V2 2W2	UL94 V-0	Dust Tight Waterproof	IP67	30 A	Male Pins Plug	Panel Mount Right Angle Through Hole	2	Power	Gold	Black	Copper Alloy	125 V	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)
