629W2WK2640-1NB
ActiveEDAC Inc.

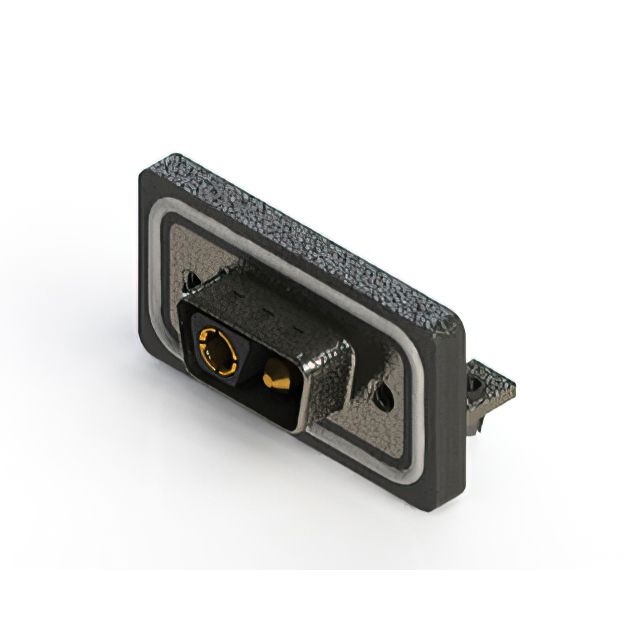

CONN D-SUB PLUG 2POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W2WK2640-1NB
ActiveEDAC Inc.
CONN D-SUB PLUG 2POS R/A SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W2WK2640-1NB |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Male Pins, Plug, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 10 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Brackets, Board Lock, Grounding Indents, Shielded, Filter |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2WK2, 1 (DE, E), 2V2, 2W2C, 2W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W2W Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions | Color | Connector Style | Shell Size, Connector Layout | Dielectric Material | Shell Material, Finish | Features | Contact Material | Contact Finish | Material Flammability Rating | Termination | Mounting Type | Ingress Protection | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Type | Connector Type | Voltage Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 10 A | 15 µin | 0.38 µm | Housing/Shell (M3) | Power | Female Sockets Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 10 A | 30 Áin | 0.76 Ám | Housing/Shell (M3) | Power | Female Sockets Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 30 A | 15 µin | 0.38 µm | Housing/Shell (M3) | Power | Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Grounding Indents Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 40 A | 15 µin | 0.38 µm | Housing/Shell (M3) | Power | Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 40 A | 30 Áin | 0.76 Ám | Housing/Shell (M3) | Power | Female Sockets Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 20 A | 15 µin | 0.38 µm | Housing/Shell (M3) | Power | Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 40 A | Housing/Shell (4-40) | Power | Female Sockets Male Pins Plug | 125 VDC | Flash | ||
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 40 A | 5 µin | 0.127 µm | Housing/Shell (4-40) | Power | Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 30 A | 15 µin | 0.38 µm | Housing/Shell (4-40) | Power | Male Pins Plug | 125 VDC | |
EDAC Inc. | -55 °C | 125 °C | 1 | 2 | Black | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Grounding Indents Shielded | Copper Alloy | Gold | UL94 V-0 | Solder | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 30 A | 15 µin | 0.38 µm | Housing/Shell (M3) | Power | Male Pins Plug | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 14.66 | |
Description
General part information
629W2W Series
2 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
