Technical Specifications
Parameters and characteristics commom to parts in this series

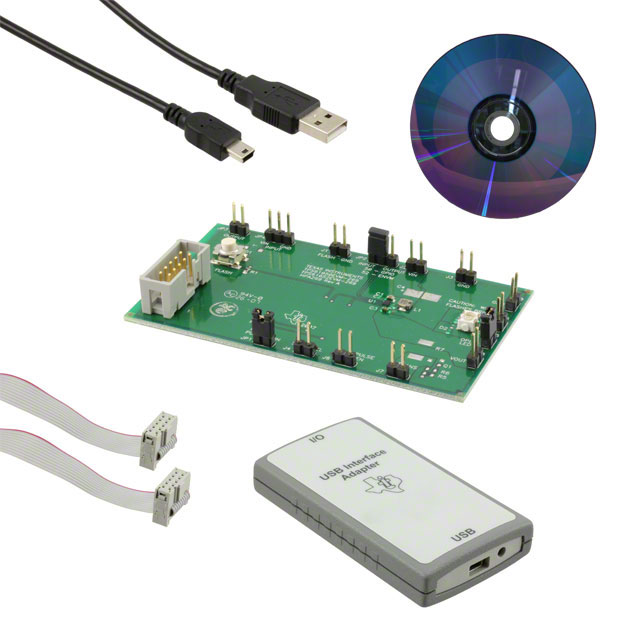

Specification | TPS61052EVM-269 | TPS61052 Series |
---|---|---|
Applications | - | Camera Flash |
Current - Output / Channel | 1.2 A | 1.2 A |
Dimming | - | PWM |
Features | Dimmable | Dimmable |
Frequency | - | 2 MHz |
Internal Switch(s) | - | True |
Mounting Type | - | Surface Mount |
Number of Outputs | - | 1 |
Operating Temperature | - | 85 °C |
Operating Temperature | - | -40 °C |
Outputs and Type | Non-Isolated | Non-Isolated |
Outputs and Type | 1 | 1 |
Package / Case | - | 12-UFBGA, DSBGA, 10-VFDFN Exposed Pad |
Supplied Contents | Board(s) | Board(s) |
Supplier Device Package | - | 12-DSBGA, 10-VSON (3x3) |
Topology | - | Step-Up (Boost) |
Type | - | DC DC Regulator |
Utilized IC / Part | TPS61052 | TPS61052 |
Voltage - Input [Max] | 6 V | 6 V |
Voltage - Input [Min] | 2.5 V | 2.5 V |
Voltage - Output | - | 5.5 V |
Voltage - Supply (Max) | - | 6 V |
Voltage - Supply (Min) | - | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS61052 Series
1.2A high power white LED driver with I2C compatible interface, DSBGA package
Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output | Number of Outputs | Dimming | Type | Mounting Type | Internal Switch(s) | Voltage - Supply (Max) [Max] | Voltage - Supply (Min) [Min] | Current - Output / Channel | Frequency | Package / Case | Topology | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Utilized IC / Part | Outputs and Type | Outputs and Type | Features |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS61052YZGRThe TPS6105x device is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The device uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current.
The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors. To optimize overall efficiency, the device operates with only a 250-mV LED feedback voltage.
The TPS6105x device not only operates as a regulated current source, but also as a standard voltage-boost regulator. This additional operating mode can be useful to supply other high-power devices in the system, such as a hands-free audio power amplifier, or any other component requiring a supply voltage higher than the battery voltage (refer to TPS61052).
For highest flexibility, the LED current or the desired output voltage can be programmed through an I2C compatible interface. To simplify flash synchronization with the camera module, the device offers a trigger pin (FLASH_SYNC) for fast LED turnon time.
When the TPS6105x is not in use, it can be put into shutdown mode through the I2C-compatible interface, reducing the input current to 0.3 µA (typical). During shutdown, the LED pin is high impedance to avoid leakage current through the LED.
The TPS6105x device is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The device uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current.
The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors. To optimize overall efficiency, the device operates with only a 250-mV LED feedback voltage.
The TPS6105x device not only operates as a regulated current source, but also as a standard voltage-boost regulator. This additional operating mode can be useful to supply other high-power devices in the system, such as a hands-free audio power amplifier, or any other component requiring a supply voltage higher than the battery voltage (refer to TPS61052).
For highest flexibility, the LED current or the desired output voltage can be programmed through an I2C compatible interface. To simplify flash synchronization with the camera module, the device offers a trigger pin (FLASH_SYNC) for fast LED turnon time.
When the TPS6105x is not in use, it can be put into shutdown mode through the I2C-compatible interface, reducing the input current to 0.3 µA (typical). During shutdown, the LED pin is high impedance to avoid leakage current through the LED. | 12-DSBGA | 85 °C | -40 °C | Camera Flash | 5.5 V | 1 | PWM | DC DC Regulator | Surface Mount | 6 V | 2.5 V | 1.2 A | 2 MHz | 12-UFBGA, DSBGA | Step-Up (Boost) | ||||||||
Texas Instruments TPS61052YZGTLED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 1.2A (Flash) 12-DSBGA | 12-DSBGA | 85 °C | -40 °C | Camera Flash | 5.5 V | 1 | PWM | DC DC Regulator | Surface Mount | 6 V | 2.5 V | 1.2 A | 2 MHz | 12-UFBGA, DSBGA | Step-Up (Boost) | ||||||||
1.2 A | 6 V | 2.5 V | Board(s) | TPS61052 | Non-Isolated | 1 | Dimmable | ||||||||||||||||
Texas Instruments TPS61052DRCRThe TPS6105x device is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The device uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current.
The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors. To optimize overall efficiency, the device operates with only a 250-mV LED feedback voltage.
The TPS6105x device not only operates as a regulated current source, but also as a standard voltage-boost regulator. This additional operating mode can be useful to supply other high-power devices in the system, such as a hands-free audio power amplifier, or any other component requiring a supply voltage higher than the battery voltage (refer to TPS61052).
For highest flexibility, the LED current or the desired output voltage can be programmed through an I2C compatible interface. To simplify flash synchronization with the camera module, the device offers a trigger pin (FLASH_SYNC) for fast LED turnon time.
When the TPS6105x is not in use, it can be put into shutdown mode through the I2C-compatible interface, reducing the input current to 0.3 µA (typical). During shutdown, the LED pin is high impedance to avoid leakage current through the LED.
The TPS6105x device is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The device uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current.
The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors. To optimize overall efficiency, the device operates with only a 250-mV LED feedback voltage.
The TPS6105x device not only operates as a regulated current source, but also as a standard voltage-boost regulator. This additional operating mode can be useful to supply other high-power devices in the system, such as a hands-free audio power amplifier, or any other component requiring a supply voltage higher than the battery voltage (refer to TPS61052).
For highest flexibility, the LED current or the desired output voltage can be programmed through an I2C compatible interface. To simplify flash synchronization with the camera module, the device offers a trigger pin (FLASH_SYNC) for fast LED turnon time.
When the TPS6105x is not in use, it can be put into shutdown mode through the I2C-compatible interface, reducing the input current to 0.3 µA (typical). During shutdown, the LED pin is high impedance to avoid leakage current through the LED. | 10-VSON (3x3) | 85 °C | -40 °C | Camera Flash | 5.5 V | 1 | PWM | DC DC Regulator | Surface Mount | 6 V | 2.5 V | 1.2 A | 2 MHz | 10-VFDFN Exposed Pad | Step-Up (Boost) |
Description
General part information
TPS61052 Series
The TPS6105x device is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The device uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current.
The 2-MHz switching frequency allows the use of small and low profile 2.2-µH inductors. To optimize overall efficiency, the device operates with only a 250-mV LED feedback voltage.
The TPS6105x device not only operates as a regulated current source, but also as a standard voltage-boost regulator. This additional operating mode can be useful to supply other high-power devices in the system, such as a hands-free audio power amplifier, or any other component requiring a supply voltage higher than the battery voltage (refer to TPS61052).
