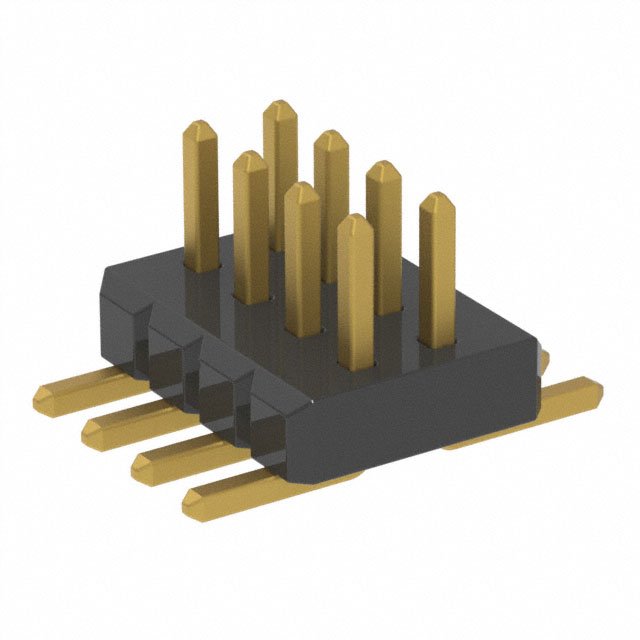

FTM-104-03-G-DV

Active

Samtec Inc.

CONN HEADER SMD 8POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTM-104-03-G-DV

Active

Samtec Inc.

CONN HEADER SMD 8POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTM-104-03-G-DV

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.038 in
Insulation Height	0.97 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTM-133 Series

Headers & Wire Housings 1.00 mm Surface Mount Micro Low Profile Terminal Strip

...

Part	Insulation Material	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Number of Positions Loaded	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Contact Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Features
Samtec Inc. FTM-125-03-L-DV-TR	Liquid Crystal Polymer (LCP)	Black	50	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact
Samtec Inc. FTM-104-02-L-DV	Liquid Crystal Polymer (LCP)	Black	8	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in
Samtec Inc. FTM-112-03-L-DV-S-P-TR	Liquid Crystal Polymer (LCP)	Black	24	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact			End Shrouds Pick and Place
Samtec Inc. FTM-112-03-F-DV-S	Liquid Crystal Polymer (LCP)	Black	24	0.039 "	1 mm	3 µin	0.076 µm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact			End Shrouds
Samtec Inc. FTM-115-02-L-DV-P	Liquid Crystal Polymer (LCP)	Black	30	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	Pick and Place
Samtec Inc. FTM-133-03-F-DV	Liquid Crystal Polymer (LCP)	Black	66	0.039 "	1 mm	3 µin	0.076 µm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact
Samtec Inc. FTM-125-02-L-DV-TR	Liquid Crystal Polymer (LCP)	Black	50	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in
Samtec Inc. FTM-133-02-L-DV-S	Liquid Crystal Polymer (LCP)	Black	66	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	End Shrouds
Samtec Inc. FTM-115-02-G-DV-P	Liquid Crystal Polymer (LCP)	Black	30	0.039 "	1 mm			Phosphor Bronze	Solder	All		Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	Pick and Place
Samtec Inc. FTM-104-03-G-DV	Liquid Crystal Polymer (LCP)	Black	8	0.039 "	1 mm			Phosphor Bronze	Solder	All		Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.88

Description

General part information

FTM-133 Series

Headers & Wire Housings 1.00 mm Surface Mount Micro Low Profile Terminal Strip
