FTM-112-03-L-DV-S-P-TR

Active

Samtec Inc.

CONN HEADER SMD 24POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

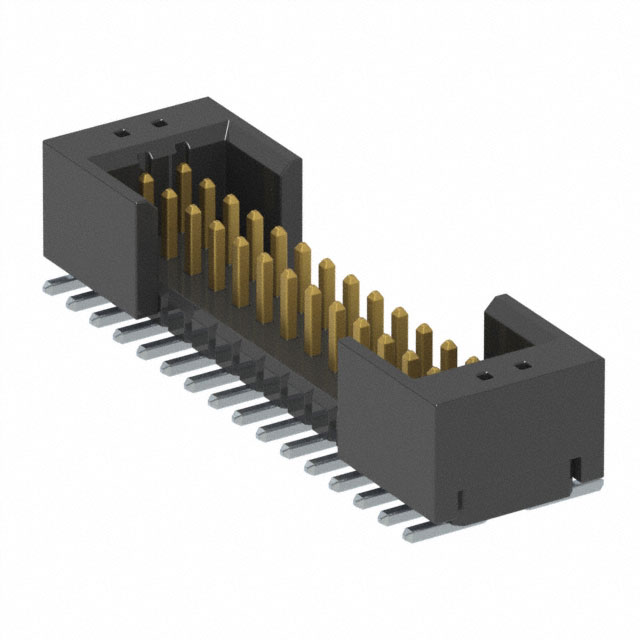

FTM-112-03-L-DV-S-P-TR

Active

Samtec Inc.

CONN HEADER SMD 24POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTM-112-03-L-DV-S-P-TR

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds, Pick and Place
Insulation Color	Black
Insulation Height	0.038 in
Insulation Height	0.97 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTM-133 Series

Headers & Wire Housings 1.00 mm Surface Mount Micro Low Profile Terminal Strip

...

Part	Insulation Material	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Number of Positions Loaded	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Contact Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Features
Samtec Inc. FTM-125-03-L-DV-TR	Liquid Crystal Polymer (LCP)	Black	50	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact
Samtec Inc. FTM-104-02-L-DV	Liquid Crystal Polymer (LCP)	Black	8	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in
Samtec Inc. FTM-112-03-L-DV-S-P-TR	Liquid Crystal Polymer (LCP)	Black	24	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact			End Shrouds Pick and Place
Samtec Inc. FTM-112-03-F-DV-S	Liquid Crystal Polymer (LCP)	Black	24	0.039 "	1 mm	3 µin	0.076 µm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact			End Shrouds
Samtec Inc. FTM-115-02-L-DV-P	Liquid Crystal Polymer (LCP)	Black	30	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	Pick and Place
Samtec Inc. FTM-133-03-F-DV	Liquid Crystal Polymer (LCP)	Black	66	0.039 "	1 mm	3 µin	0.076 µm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact
Samtec Inc. FTM-125-02-L-DV-TR	Liquid Crystal Polymer (LCP)	Black	50	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in
Samtec Inc. FTM-133-02-L-DV-S	Liquid Crystal Polymer (LCP)	Black	66	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	End Shrouds
Samtec Inc. FTM-115-02-G-DV-P	Liquid Crystal Polymer (LCP)	Black	30	0.039 "	1 mm			Phosphor Bronze	Solder	All		Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	Pick and Place
Samtec Inc. FTM-104-03-G-DV	Liquid Crystal Polymer (LCP)	Black	8	0.039 "	1 mm			Phosphor Bronze	Solder	All		Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 3.62

Description

General part information

FTM-133 Series

Headers & Wire Housings 1.00 mm Surface Mount Micro Low Profile Terminal Strip
