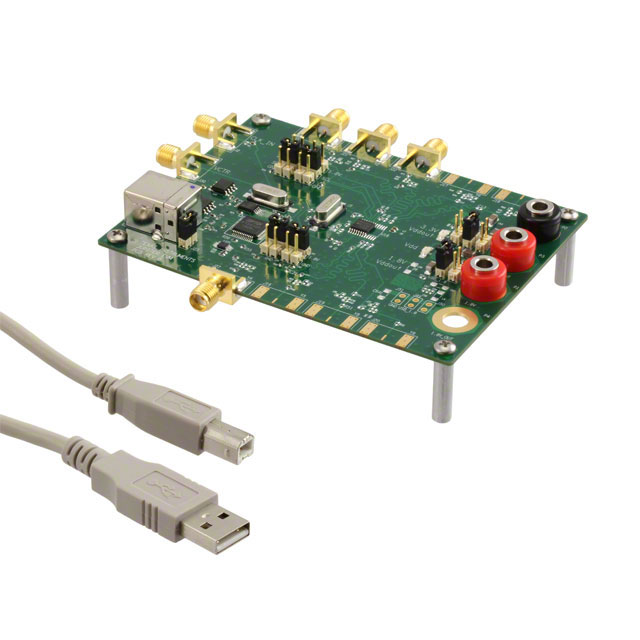

CDCE925PERF-EVM
ActiveEVAL MOD PERFORMANCE FOR CDCE914
Deep-Dive with AI
Search across all available documentation for this part.
CDCE925PERF-EVM
ActiveEVAL MOD PERFORMANCE FOR CDCE914
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCE925PERF-EVM | CDCE925 Series |
|---|---|---|
| Differential - Input:Output | - | False |
| Differential - Input:Output | - | False |
| Divider/Multiplier | - | Yes/No |
| Frequency - Max | - | 230 MHz |
| Function | Clock Generator | Clock Generator |
| Input | - | LVCMOS, Crystal |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output | - | LVCMOS |
| Package / Case | - | 0.173 " |
| Package / Case | - | 16-TSSOP |
| Package / Case | - | 4.4 mm |
| PLL | - | Yes with Bypass |
| Ratio - Input:Output | - | 1:5 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-TSSOP |
| Type | Timing | Timing, PLL Clock Generator |
| Utilized IC / Part | CDCE925PERF | CDCE925PERF |
| Voltage - Supply | - | 1.7 V |
| Voltage - Supply | - | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
CDCE925 Series
Programmable 2-PLL VCXO clock synthesizer with 2.5-V or 3.3-V LVCMOS outputs
| Part | Utilized IC / Part | Supplied Contents | Function | Type | Package / Case [x] | Package / Case | Package / Case [x] | Ratio - Input:Output [custom] | Output | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Number of Circuits | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | PLL | Input | Divider/Multiplier | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCE925PERF-EVM | CDCE925PERF | Board(s) | Clock Generator | Timing | ||||||||||||||||||
Texas Instruments CDCE925PW | PLL Clock Generator | 0.173 " | 16-TSSOP | 4.4 mm | 1:5 | LVCMOS | 1.7 V | 1.9 V | Surface Mount | 1 | -40 °C | 85 °C | 230 MHz | Yes with Bypass | Crystal, LVCMOS | Yes/No | 16-TSSOP | |||||
Texas Instruments CDCE925PWRG4 | PLL Clock Generator | 0.173 " | 16-TSSOP | 4.4 mm | 1:5 | LVCMOS | 1.7 V | 1.9 V | Surface Mount | 1 | -40 °C | 85 °C | 230 MHz | Yes with Bypass | Crystal, LVCMOS | Yes/No | 16-TSSOP | |||||
Texas Instruments CDCE925PWG4 | PLL Clock Generator | 0.173 " | 16-TSSOP | 4.4 mm | 1:5 | LVCMOS | 1.7 V | 1.9 V | Surface Mount | 1 | -40 °C | 85 °C | 230 MHz | Yes with Bypass | Crystal, LVCMOS | Yes/No | 16-TSSOP |
Description
General part information
CDCE925 Series
The CDCE925 and CDCEL925 are modular PLL-based low-cost, high-performance, programmable clock synthesizers, multipliers, and dividers. They generate up to five output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230 MHz, using up to two independent configurable PLLs.
The CDCEx925 has a separate output supply pin, VDDOUT, which is 1.8 V for CDCEL925 and 2.5 V to 3.3 V for CDCE925.
The input accepts an external crystal or LVCMOS clock signal. In case of a crystal input, an on-chip load capacitor is adequate for most applications. The value of the load capacitor is programmable from 0 to 20 pF. Additionally, an on-chip VCXO is selectable which allows synchronization of the output frequency to an external control signal, that is, PWM signal.
