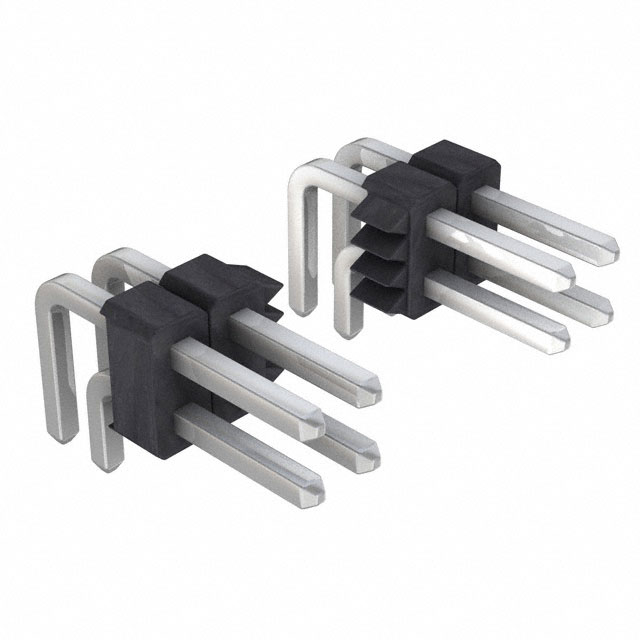

892-80-016-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

892-80-016-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-80-016-20-001101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

892-80 Series

...

Part	Voltage Rating	Number of Positions Loaded	Insulation Material	Insulation Color	Termination	Shrouding	Connector Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Number of Positions	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Mounting Type	Material Flammability Rating	Fastening Type	Number of Rows	Number of Positions
PRECI-DIP SA 892-80-006-10-001101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.122 "	3.1 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	11.64 mm	0.458 "	6	3 A	6 mm	0.236 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-066-10-003101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	14.04 mm	0.553 in	66	3 A	8.51 mm	0.335 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-018-10-003101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	14.04 mm	0.553 in	18	3 A	8.51 mm	0.335 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-026-10-003101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	14.04 mm	0.553 in	26	3 A	8.51 mm	0.335 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-078-20-001101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C			Brass	2.54 mm	0.1 in			78	3 A	6 mm	0.236 in	Through Hole Right Angle	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-030-10-004101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	20.44 mm	0.805 "	30	3 A	14.91 mm	0.587 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-068-10-003101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	14.04 mm	0.553 in	68	3 A	8.51 mm	0.335 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-016-20-001101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C			Brass	2.54 mm	0.1 in				3 A	6 mm	0.236 in	Through Hole Right Angle	UL94 V-0	Push-Pull	2	16
PRECI-DIP SA 892-80-062-10-001101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.122 "	3.1 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	11.64 mm	0.458 "	62	3 A	6 mm	0.236 in	Through Hole	UL94 V-0	Push-Pull	2
PRECI-DIP SA 892-80-016-10-003101	150 VDC	All	Glass Filled Nylon Polyamide (PA)	Black	Solder	Unshrouded	Header	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Tin	Square	-55 °C	125 °C	0.1 in	2.54 mm	Brass	2.54 mm	0.1 in	14.04 mm	0.553 in		3 A	8.51 mm	0.335 in	Through Hole	UL94 V-0	Push-Pull	2	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.78

Description

General part information

892-80 Series

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
