Connectors, Interconnects

892-80-018-10-003101

Active

Preci-Dip

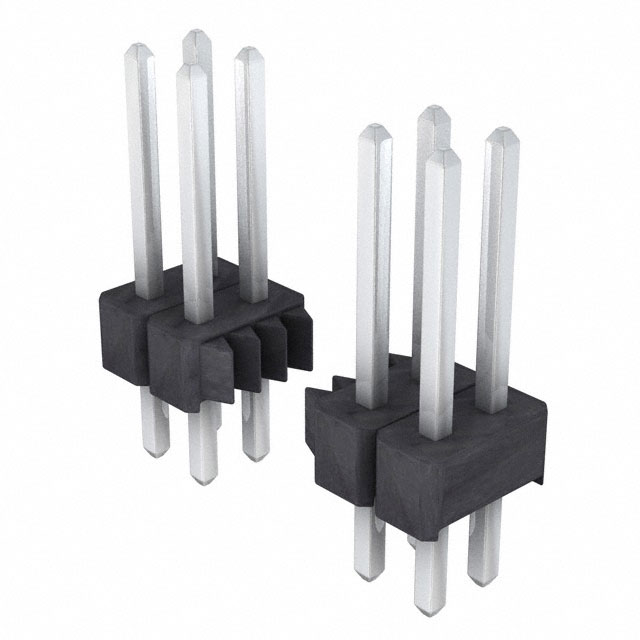

CONN HEADER VERT 18POS 2.54MM

Connectors, Interconnects

892-80-018-10-003101

Active

Preci-Dip

CONN HEADER VERT 18POS 2.54MM

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-80-018-10-003101

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.335 in
Contact Length - Post	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.553 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder
Voltage Rating	150 VDC

892-80 Series

...

Part	Contact Finish - Mating	Number of Positions	Shrouding	Fastening Type	Contact Material	Insulation Color	Voltage Rating	Number of Rows	Contact Finish - Post	Contact Length - Mating	Number of Positions Loaded	Material Flammability Rating	Mounting Type	Termination	Pitch - Mating	Current Rating	Overall Contact Length	Connector Type	Contact Type	Insulation Height	Insulation Material	Contact Length - Post	Style	Row Spacing - Mating	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)
Preci-Dip 892-80-006-10-001101	Tin	6	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.236 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.458 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.122 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-066-10-003101	Tin	66	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.335 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.553 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-054-10-002101	Tin	54	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.276 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.494 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-018-10-003101	Tin	18	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.335 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.553 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-026-10-003101	Tin	26	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.335 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.553 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-078-20-001101	Tin	78	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.236 in	All	UL94 V-0	Right Angle Through Hole	Solder	0.1 in	3 A		Header	Male Pin	0.2 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-046-10-001101	Tin	46	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.236 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.458 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.122 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-030-10-004101	Tin	30	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.587 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.805 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-068-10-003101	Tin	68	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.335 in	All	UL94 V-0	Through Hole	Solder	0.1 in	3 A	0.553 in	Header	Male Pin	0.1 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C
Preci-Dip 892-80-016-20-001101	Tin	16	Unshrouded	Push-Pull	Brass	Black	150 VDC	2	Tin	0.236 in	All	UL94 V-0	Right Angle Through Hole	Solder	0.1 in	3 A		Header	Male Pin	0.2 in	Glass Filled Nylon Polyamide (PA)	0.118 in	Board	0.1 in	Square	125 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	730	$ 1.03	<6d

CAD

3D models and CAD resources for this part

Description

General part information

892-80 Series

Connector Header Through Hole 18 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
