WL1835MODGBMOCT
ActiveWILINK™ 8 SINGLE BAND COMBO 2X2 MIMO WI-FI®, BLUETOOTH® & BLUETOOTH SMART MODULE 100-QFM -20 TO 70
Deep-Dive with AI
Search across all available documentation for this part.
WL1835MODGBMOCT
ActiveWILINK™ 8 SINGLE BAND COMBO 2X2 MIMO WI-FI®, BLUETOOTH® & BLUETOOTH SMART MODULE 100-QFM -20 TO 70
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WL1835MODGBMOCT | WL1835MOD Series |
|---|---|---|
| Current - Receiving [Max] | 85 mA | 85 mA |
| Current - Receiving [Min] | 49 mA | 49 mA |
| Current - Transmitting [Max] | 420 mA | 420 mA |
| Current - Transmitting [Min] | 238 mA | 238 mA |
| Data Rate | 54 Mbps | 54 Mbps |
| Frequency | 2.4 GHz | 2.4 GHz |
| Modulation | OFDM, CCK, GFSK, DSSS | OFDM, CCK, GFSK, DSSS |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 ░C | 70 ░C |
| Operating Temperature [Min] | -20 ░C | -20 ░C |
| Package / Case | Module | Module |
| Power - Output | 17.3 dBm | 17.3 dBm |
| Protocol | Bluetooth 4.2, 802.11b/g/n | Bluetooth 4.2, 802.11b/g/n |
| RF Family/Standard | WiFi, Bluetooth | WiFi, Bluetooth |
| Sensitivity | -96.3 dBm | -96.3 dBm |
| Serial Interfaces | SDIO, UART | SDIO, UART |
| Voltage - Supply [Max] | 4.8 V | 4.8 V |
| Voltage - Supply [Min] | 2.9 V | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 16.16 | |
| 10 | $ 15.90 | |||
| 25 | $ 15.63 | |||
| 100 | $ 15.37 | |||
| DigiKey | N/A | 1 | $ 28.18 | |
| 10 | $ 22.22 | |||
| 18 | $ 16.95 | |||
| 25 | $ 20.48 | |||
| 100 | $ 18.38 | |||
| 250 | $ 14.66 | |||
| Digikey | Cut Tape (CT) | 1 | $ 23.61 | |
| 10 | $ 21.79 | |||
| 25 | $ 19.98 | |||
| 100 | $ 18.46 | |||
| Digi-Reel® | 1 | $ 23.61 | ||
| 10 | $ 21.79 | |||
| 25 | $ 19.98 | |||
| 100 | $ 18.46 | |||
| Tape & Reel (TR) | 250 | $ 15.19 | ||
| 500 | $ 14.98 | |||
| LCSC | N/A | 1 | $ 11.68 | |
| 10 | $ 11.38 | |||
| Mouser Electronics | N/A | 1 | $ 21.86 | |
| 10 | $ 20.41 | |||
| 25 | $ 18.95 | |||
| 50 | $ 18.89 | |||
| 100 | $ 17.72 | |||
| 250 | $ 15.18 | |||
| 500 | $ 14.98 | |||
| Rochester Electronics | N/A | 1 | $ 16.65 | |
| 25 | $ 16.32 | |||
| 100 | $ 15.65 | |||
| 500 | $ 14.99 | |||
| 1000 | $ 14.15 | |||
| Texas Instruments | SMALL T&R | 1 | $ 19.90 | |
| 100 | $ 17.38 | |||
| 250 | $ 13.40 | |||
| 1000 | $ 11.99 | |||
| Verical | N/A | 1 | $ 15.37 | |
| Win Source Electronics | N/A | 4 | $ 13.03 | |
| 9 | $ 12.19 | |||
| 13 | $ 11.77 | |||
| 19 | $ 10.93 | |||
| 24 | $ 10.51 | |||
| 30 | $ 10.09 | |||
WL1835MOD Series
WiLink™ 8 single band combo 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module
| Part | RF Family/Standard | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Data Rate | Frequency | Protocol | Current - Receiving [Max] | Current - Receiving [Min] | Power - Output | Mounting Type | Current - Transmitting [Min] | Current - Transmitting [Max] | Serial Interfaces | Sensitivity | Modulation | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments WL1835MODGBMOCR | Bluetooth, WiFi | Module | 2.9 V | 4.8 V | 54 Mbps | 2.4 GHz | 802.11b/g/n, Bluetooth 4.2 | 85 mA | 49 mA | 17.3 dBm | Surface Mount | 238 mA | 420 mA | SDIO, UART | -96.3 dBm | CCK, DSSS, GFSK, OFDM | 70 ░C | -20 ░C |
Texas Instruments WL1835MODGBMOCT | Bluetooth, WiFi | Module | 2.9 V | 4.8 V | 54 Mbps | 2.4 GHz | 802.11b/g/n, Bluetooth 4.2 | 85 mA | 49 mA | 17.3 dBm | Surface Mount | 238 mA | 420 mA | SDIO, UART | -96.3 dBm | CCK, DSSS, GFSK, OFDM | 70 ░C | -20 ░C |
Description
General part information
WL1835MOD Series

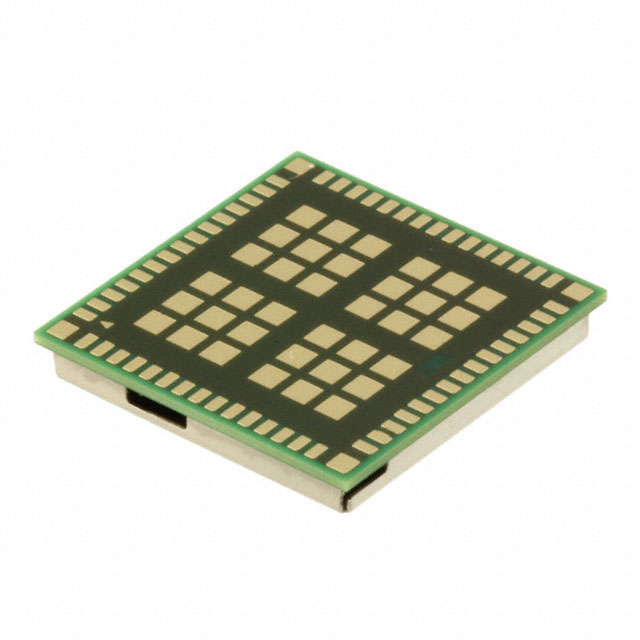

The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi®andBluetooth®coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi®andBluetooth®coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
