Technical Specifications
Parameters and characteristics commom to parts in this series

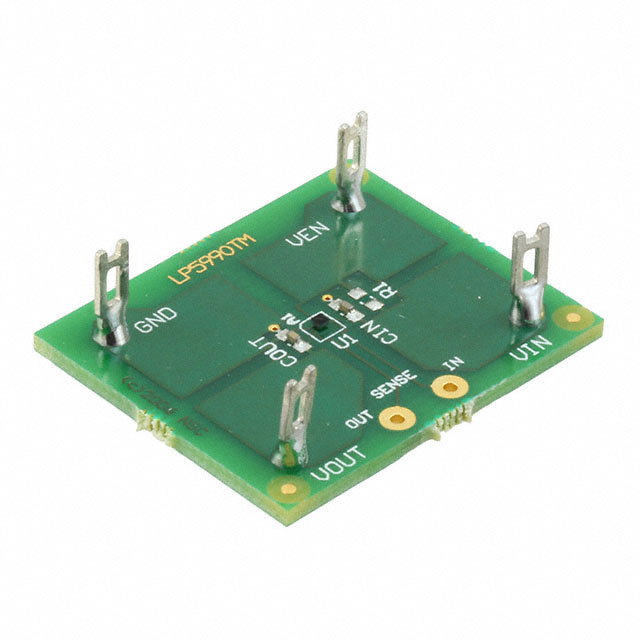

| Specification | LP5990TM-2.8EV | LP5990 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Control Features | - | Enable |
| Current - Output | 200 mA | 200 mA |
| Current - Quiescent (Iq) | - | 75 µA |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output Configuration | - | Positive |
| Output Type | - | 27.03 °C/W |
| Package / Case | - | DSBGA, 4-WFBGA |
| Protection Features | - | Over Current, Short Circuit, Over Temperature |
| PSRR | - | 55 dB |
| Regulator Type | Positive Fixed | Positive Fixed |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 4-DSBGA |
| Utilized IC / Part | LP5990 | LP5990 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.2 V | 2.2 V |
| Voltage - Output | 2.8 V | 1.8 - 2.8 V |
| Voltage - Output (Min/Fixed) | - | 1.2 - 3.6 V |
| Voltage Dropout (Max) | - | 0.25 V |
