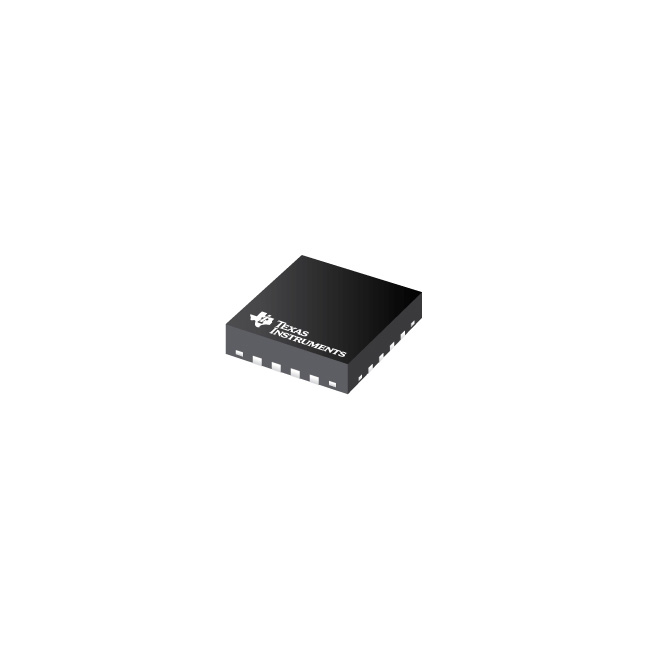

SN74HC595BRWNR
Active8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT 16-X1QFN -55 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
SN74HC595BRWNR
Active8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT 16-X1QFN -55 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SN74HC595BRWNR |
|---|---|
| Function | Serial to Parallel |
| Logic Type | Shift Register |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements [custom] | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Tri-State |
| Package / Case | 16-XFQFN Exposed Pad |
| Supplier Device Package | 16-X1QFN (2.5x2.5) |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
SN74HC595B Series
8-Bit Shift Registers With 3-State Output
| Part | Supplier Device Package | Function | Number of Elements [custom] | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Bits per Element | Logic Type | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments SN74HC595BRWNRThe SN74HC595B devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the all outputs are in the high-impedance state except QH’.
The SN74HC595B devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the all outputs are in the high-impedance state except QH’. | 16-X1QFN (2.5x2.5) | Serial to Parallel | 1 | 16-XFQFN Exposed Pad | 2 V | 6 V | -55 °C | 125 °C | Surface Mount | 8 | Shift Register | Tri-State |
Description
General part information
SN74HC595B Series
The SN74HC595B devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the all outputs are in the high-impedance state except QH’.
The SN74HC595B devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the all outputs are in the high-impedance state except QH’.
