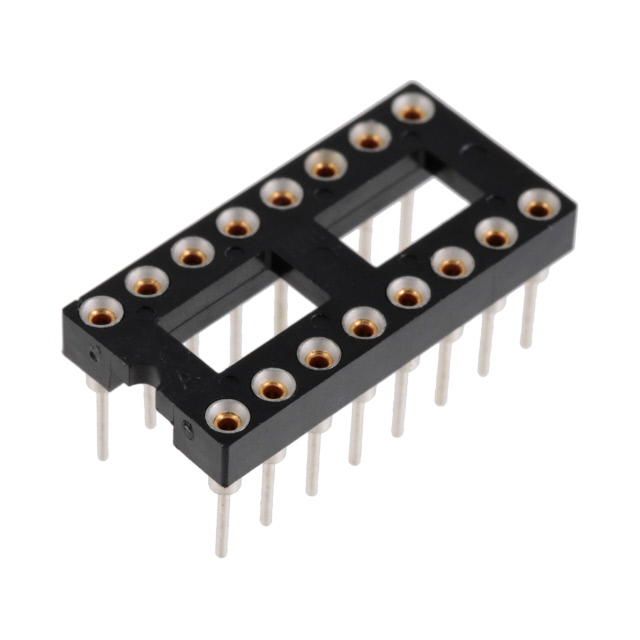

ICA-316-ZAGT
ActiveSamtec Inc.
CONN IC DIP SOCKET 16POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
ICA-316-ZAGT
ActiveSamtec Inc.
CONN IC DIP SOCKET 16POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICA-316-ZAGT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.59 | |
| 10 | $ 5.96 | |||
| 25 | $ 5.63 | |||
| 50 | $ 5.49 | |||
| 100 | $ 5.22 | |||
| 250 | $ 4.67 | |||
| 500 | $ 4.40 | |||
| 1000 | $ 3.85 | |||
| 2500 | $ 3.65 | |||
Description
General part information
ICA-316 Series
16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
