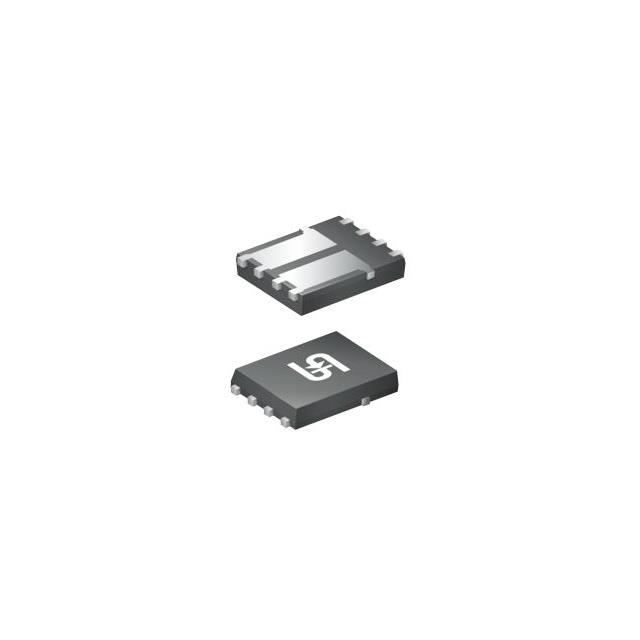

TSM300NB06LDCR RLG

Active

Taiwan Semiconductor Corporation

MOSFET 2N-CH 60V 5A/24A 8PDFNU

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

MOSFET 2N-CH 60V 5A/24A 8PDFNU

Technical Specifications

Parameters and characteristics for this part

Specification	TSM300NB06LDCR RLG

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	24 A, 5 A
Drain to Source Voltage (Vdss)	60 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	17 nC
Input Capacitance (Ciss) (Max) @ Vds	966 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power - Max	40 W, 2 W
Rds On (Max) @ Id, Vgs	30 mOhm
Supplier Device Package	8-PDFNU (5x6)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.5 V

Part	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Technology	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Package / Case	Vgs(th) (Max) @ Id	FET Feature	Power - Max	Gate Charge (Qg) (Max) @ Vgs	Configuration
Taiwan Semiconductor Corporation TSM300NB06CR RLG	N-Channel	1110 pF	20 V	30 mOhm	60 V	8-PDFN	5.75	5.2	18 nC	-55 °C	175 ░C	10 V	MOSFET (Metal Oxide)	Surface Mount	6 A 27 A	3.1 W 56 W	8-PowerLDFN	4.5 V
Taiwan Semiconductor Corporation TSM300NB06LDCR RLG		966 pF		30 mOhm	60 V	8-PDFNU (5x6)				-55 °C	150 °C		MOSFET (Metal Oxide)	Surface Mount	5 A 24 A		8-PowerTDFN	2.5 V	Logic Level Gate	2 W 40 W	17 nC	2 N-Channel (Dual)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 60V 5A (Ta), 24A (Tc) 2W (Ta), 40W (Tc) Surface Mount 8-PDFNU (5x6)
