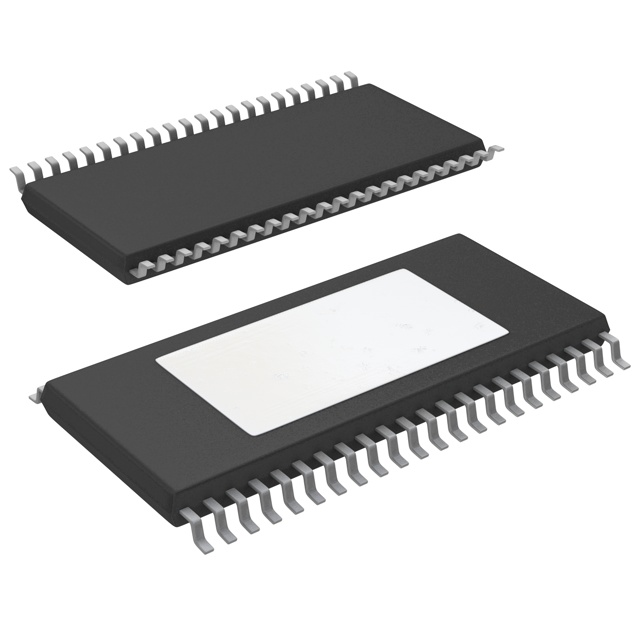

TPA3255DDV
Active315-W STEREO, 600-W MONO, 18- TO 53.5-V SUPPLY, ANALOG INPUT CLASS-D AUDIO AMPLIFIER 44-HTSSOP 0 TO 70
Deep-Dive with AI
Search across all available documentation for this part.
TPA3255DDV
Active315-W STEREO, 600-W MONO, 18- TO 53.5-V SUPPLY, ANALOG INPUT CLASS-D AUDIO AMPLIFIER 44-HTSSOP 0 TO 70
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPA3255DDV | TPA3255 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Features | Depop, Short-Circuit Protection | Depop, Short-Circuit Protection |
| Grade | - | Automotive |
| Max Output Power x Channels @ Load | 315 W, 600 W | 315 - 605 W |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 105 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Output Type | 2-Channel (Stereo) | 1-Channel (Mono), 2-Channel (Stereo) |
| Package / Case | 44-PowerTSSOP | 44-PowerTSSOP |
| Package / Case [x] | 6.2 mm | 6.2 mm |
| Package / Case [x] | 0.244 in | 0.244 in |
| Qualification | - | AEC-Q100 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 44-HTSSOP | 44-HTSSOP |
| Type | Class D | Class D |
| Utilized IC / Part | - | TPA3255 |
| Voltage - Supply [Max] | 53.5 V | 53.5 V |
| Voltage - Supply [Min] | 18 V | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 0 | $ 6.37 | |
| 1 | $ 4.54 | |||
| 35 | $ 6.18 | |||
| 105 | $ 5.90 | |||
| 1015 | $ 5.75 | |||
| Chip1Stop | N/A | 1 | $ 4.73 | |
| DigiKey | N/A | 1 | $ 11.10 | |
| 10 | $ 8.69 | |||
| 35 | $ 7.91 | |||
| 105 | $ 7.41 | |||
| 280 | $ 7.08 | |||
| 525 | $ 6.91 | |||
| 1015 | $ 6.76 | |||
| Digikey | Tube | 1 | $ 11.90 | |
| 10 | $ 10.75 | |||
| 35 | $ 10.25 | |||
| 105 | $ 8.90 | |||
| 280 | $ 8.50 | |||
| 525 | $ 7.75 | |||
| 1015 | $ 6.75 | |||
| Mouser Electronics | N/A | 1 | $ 9.63 | |
| 10 | $ 7.82 | |||
| 25 | $ 7.65 | |||
| 105 | $ 7.64 | |||
| 1015 | $ 6.23 | |||
| Texas Instruments | TUBE | 1 | $ 9.11 | |
| 100 | $ 7.42 | |||
| 250 | $ 5.84 | |||
| 1000 | $ 4.95 | |||
| Verical | N/A | 1 | $ 4.54 | |
| Win Source Electronics | N/A | 16 | $ 3.19 | |
| 34 | $ 2.98 | |||
| 53 | $ 2.88 | |||
| 75 | $ 2.68 | |||
| 98 | $ 2.57 | |||
| 122 | $ 2.47 | |||
TPA3255 Series
EVALUATION MODULE
| Part | Max Output Power x Channels @ Load | Supplied Contents | Voltage - Supply [Min] | Voltage - Supply [Max] | Utilized IC / Part | Board Type | Output Type | Type | Grade | Mounting Type | Qualification | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case [x] | Package / Case [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPA3255EVM | 315 W, 605 W | Board(s) | 18 V | 53.5 V | TPA3255 | Fully Populated | 1-Channel (Mono), 2-Channel (Stereo) | |||||||||||
Texas Instruments TPA3255TDDVRQ1 | 315 W, 600 W | 18 V | 53.5 V | 2-Channel (Stereo) | Class D | Automotive | Surface Mount | AEC-Q100 | 44-HTSSOP | -40 °C | 105 °C | 44-PowerTSSOP | 6.2 mm | 0.244 in | ||||
Texas Instruments TPA3255DDV | 315 W, 600 W | 18 V | 53.5 V | 2-Channel (Stereo) | Class D | Surface Mount | 44-HTSSOP | 0 °C | 70 °C | 44-PowerTSSOP | 6.2 mm | 0.244 in | Depop, Short-Circuit Protection |
Description
General part information
TPA3255 Series
TPA3255 is a high performance class-D power amplifier that enables true premium sound quality with class-D efficiency. It features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath™ Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 315 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load and features a 2 VRMS analog input interface that works seamlessly with high performance DACs such as TI’s PCM5242. In addition to excellent audio performance, TPA3255 achieves both high power efficiency and very low power stage idle losses below 2.5W. This is achieved through the use of 85 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.
TPA3255 is a high performance class-D power amplifier that enables true premium sound quality with class-D efficiency. It features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath™ Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 315 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load and features a 2 VRMS analog input interface that works seamlessly with high performance DACs such as TI’s PCM5242. In addition to excellent audio performance, TPA3255 achieves both high power efficiency and very low power stage idle losses below 2.5W. This is achieved through the use of 85 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.
