TPA3255EVM
ActiveTexas Instruments
EVALUATION MODULE
Deep-Dive with AI
Search across all available documentation for this part.
TPA3255EVM
ActiveTexas Instruments
EVALUATION MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPA3255EVM | TPA3255 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Features | - | Depop, Short-Circuit Protection |
| Grade | - | Automotive |
| Max Output Power x Channels @ Load | 605 W, 315 W | 315 - 605 W |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 - 0 °C |
| Operating Temperature | - | 70 - 105 °C |
| Output Type | 1-Channel (Mono), 2-Channel (Stereo) | 1-Channel (Mono), 2-Channel (Stereo) |
| Package / Case | - | 44-PowerTSSOP |
| Package / Case | - | 6.2 mm |
| Package / Case | - | 0.244 in |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 44-HTSSOP |
| Type | - | Class D |
| Utilized IC / Part | TPA3255 | TPA3255 |
| Voltage - Supply [Max] | 53.5 V | 53.5 V |
| Voltage - Supply [Min] | 18 V | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 241.20 | |
TPA3255 Series
EVALUATION MODULE
| Part | Max Output Power x Channels @ Load | Supplied Contents | Voltage - Supply [Min] | Voltage - Supply [Max] | Utilized IC / Part | Board Type | Output Type | Type | Grade | Mounting Type | Qualification | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case [x] | Package / Case [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPA3255EVM | 315 W, 605 W | Board(s) | 18 V | 53.5 V | TPA3255 | Fully Populated | 1-Channel (Mono), 2-Channel (Stereo) | |||||||||||
Texas Instruments TPA3255TDDVRQ1 | 315 W, 600 W | 18 V | 53.5 V | 2-Channel (Stereo) | Class D | Automotive | Surface Mount | AEC-Q100 | 44-HTSSOP | -40 °C | 105 °C | 44-PowerTSSOP | 6.2 mm | 0.244 in | ||||
Texas Instruments TPA3255DDV | 315 W, 600 W | 18 V | 53.5 V | 2-Channel (Stereo) | Class D | Surface Mount | 44-HTSSOP | 0 °C | 70 °C | 44-PowerTSSOP | 6.2 mm | 0.244 in | Depop, Short-Circuit Protection |
Description
General part information
TPA3255 Series

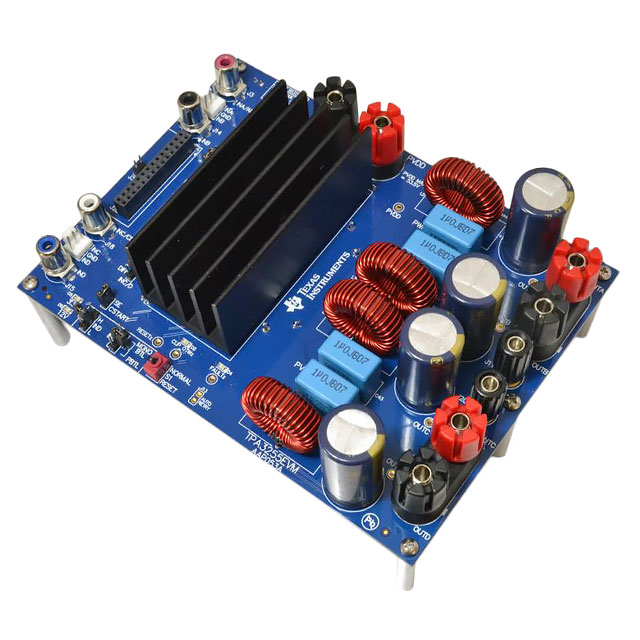

TPA3255 PurePath™ 1-Channel (Mono) or 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
