PGA400QYZSRQ1
ActiveTexas Instruments
AUTOMOTIVE PROGRAMMABLE-SENSOR SIGNAL CONDITIONER WITH MICROCONTROLLER 36-DSBGA -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
PGA400QYZSRQ1
ActiveTexas Instruments
AUTOMOTIVE PROGRAMMABLE-SENSOR SIGNAL CONDITIONER WITH MICROCONTROLLER 36-DSBGA -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PGA400QYZSRQ1 | PGA400 Series |
|---|---|---|
| Contents | - | Board(s), Cable(s) |
| Current - Supply | 13.6 mA | 13.6 mA |
| Function | - | Sensor Signal Conditioner |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

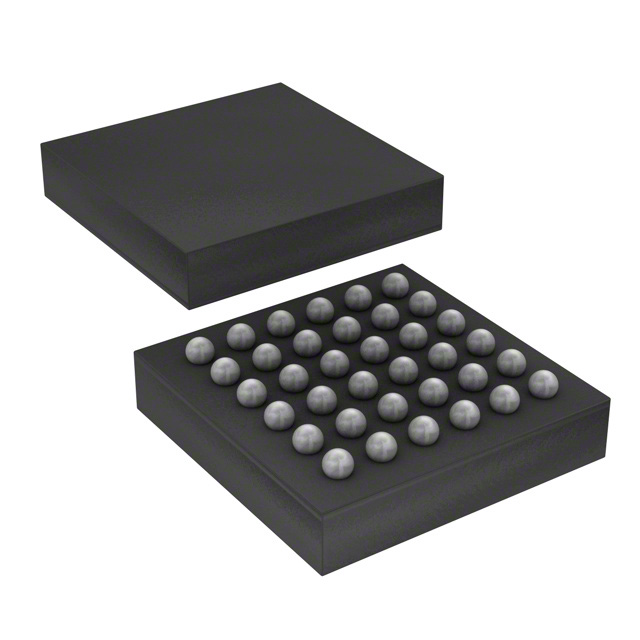

| Package / Case | DSBGA, 36-UFBGA | 36-VFQFN Exposed Pad, DSBGA, 36-UFBGA |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplied Contents | - | Board(s), Cable(s) |
| Supplier Device Package | 36-DSBGA (3.66x3.66) | 36-VQFN (6x6), 36-DSBGA (3.66x3.66) |
| Type | Pressure Sensor | Pressure Sensor, Interface |
| Utilized IC / Part | - | PGA400-Q1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 61 | $ 4.95 | |
| Rochester Electronics | N/A | 1 | $ 4.76 | |
| 25 | $ 4.66 | |||
| 100 | $ 4.47 | |||
| 500 | $ 4.28 | |||
| 1000 | $ 4.05 | |||
PGA400 Series
IC PRESSURE SENSOR SC 36VQFN
| Part | Current - Supply | Supplier Device Package | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type | Contents | Utilized IC / Part | Function | Supplied Contents | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments PGA400QRHHTEP | 13.6 mA | 36-VQFN (6x6) | 36-VFQFN Exposed Pad | 125 °C | -40 °C | Pressure Sensor | Surface Mount | ||||||
Texas Instruments PGA400Q1EVM | Interface | Board(s), Cable(s) | PGA400-Q1 | Sensor Signal Conditioner | Board(s), Cable(s) | ||||||||
Texas Instruments PGA400QYZSRQ1 | 13.6 mA | 36-DSBGA (3.66x3.66) | 36-UFBGA, DSBGA | 125 °C | -40 °C | Pressure Sensor | Surface Mount | AEC-Q100 | Automotive |
Description
General part information
PGA400 Series
AUTOMOTIVE PROGRAMMABLE-SENSOR SIGNAL CONDITIONER WITH MICROCONTROLLER 36-DSBGA -40 TO 125
Documents
Technical documentation and resources
No documents available
