P50E-030S-EA
Active3M
80000904823 P50E-030S-EA=PAK50 CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
P50E-030S-EA
Active3M
80000904823 P50E-030S-EA=PAK50 CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P50E-030S-EA | P50E Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Socket | Socket, Plug |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish - Post | - | Tin Alloy, Gold |
| Contact Finish Thickness | Flash | Flash |
| Contact Finish Thickness | - | 10 Áin |
| Contact Finish Thickness | - | 0.25 Ám |
| Contact Finish Thickness - Mating | - | 10 çin |
| Contact Finish Thickness - Mating | - | 0.25 çm |
| Contact Finish Thickness - Post | - | Flash |
| Contact Length - Post | - | 0.118 in |
| Contact Length - Post | - | 3 mm |
| Contact Material | - | Copper Alloy |
| Contact Type | Outer Shroud Contact | Outer Shroud Contact, Center Strip Contact |
| Current Rating (Amps) | - | 0.5 A |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks, Latch Holder |
| Features | Closed End | Closed End, Retention Clips |
| Insulation Color | - | Black |
| Insulation Height | - | 7 mm |
| Insulation Height | - | 0.276 - 0.421 in |
| Insulation Height | - | 10.7 mm |
| Insulation Material | - | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Right Angle, Through Hole |
| Number of Positions | 30 | 20 - 100 |
| Number of Positions Loaded | - | All |
| Number of Rows | 2 | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -55 °C |
| Pitch - Mating | - | 0.05 in |
| Pitch - Mating | - | 1.27 mm |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Shrouding | - | Shrouded - 4 Wall |
| Style | - | Board to Board, Cable |
| Termination | - | Solder |
| Wire Gauge | 28 AWG | 28 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
P50E Series
80000904823 P50E-030S-EA=PAK50 CONNECTOR
| Part | Number of Rows | Contact Finish Thickness | Color | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions | Fastening Type | Features | Cable Termination | Connector Type | Wire Gauge | Contact Type | Mounting Type | Wire Type | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Style | Shrouding | Insulation Material | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish - Post | Material Flammability Rating | Contact Material | Number of Positions Loaded | Contact Finish Thickness - Post | Insulation Height | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | Flash | Black | Gold | 0.05 in | 1.27 mm | 30 | Latch Lock/Eject Hooks | Closed End | IDC | Socket | 28 AWG | Outer Shroud Contact | Free Hanging (In-Line) | Ribbon Cable | ||||||||||||||||||||||||||
2 | 34 | Latch Holder | Plug | Center Strip Contact | Through Hole, Right Angle | 0.118 in | 3 mm | 7 mm | 0.276 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Tin Alloy | UL94 V-0 | Copper Alloy | All | ||||||||||||||
2 | 68 | Latch Holder | Plug | Center Strip Contact | Through Hole, Right Angle | 0.118 in | 3 mm | 7 mm | 0.276 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Gold | UL94 V-0 | Copper Alloy | All | Flash | |||||||||||||
2 | 80 | Latch Holder | Retention Clips | Plug | Center Strip Contact | Through Hole, Right Angle | 0.118 in | 3 mm | 7 mm | 0.276 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Gold | UL94 V-0 | Copper Alloy | All | Flash | ||||||||||||
2 | 40 | Latch Holder | Plug | Center Strip Contact | Through Hole | 0.118 in | 3 mm | 0.421 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Gold | UL94 V-0 | Copper Alloy | All | Flash | 10.7 mm | |||||||||||||
2 | 50 | Latch Holder | Plug | Center Strip Contact | Through Hole, Right Angle | 0.118 in | 3 mm | 7 mm | 0.276 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Gold | UL94 V-0 | Copper Alloy | All | Flash | |||||||||||||
2 | Flash | Black | Gold | 0.05 in | 1.27 mm | 34 | Latch Lock/Eject Hooks | Closed End | IDC | Socket | 28 AWG | Outer Shroud Contact | Free Hanging (In-Line) | Ribbon Cable | ||||||||||||||||||||||||||
2 | 52 | Latch Holder | Plug | Center Strip Contact | Through Hole, Right Angle | 0.118 in | 3 mm | 7 mm | 0.276 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Gold | UL94 V-0 | Copper Alloy | All | Flash | |||||||||||||
2 | 40 | Latch Holder | Retention Clips | Plug | Center Strip Contact | Through Hole, Right Angle | 0.118 in | 3 mm | 7 mm | 0.276 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Tin Alloy | UL94 V-0 | Copper Alloy | All | |||||||||||||
2 | 60 | Latch Holder | Plug | Center Strip Contact | Through Hole | 0.118 in | 3 mm | 0.421 in | 10 çin | 0.25 çm | Solder | 85 °C | -55 °C | 0.5 A | Board to Board, Cable | Shrouded - 4 Wall | Glass Filled, Nylon, Polyamide (PA) | Black | 0.05 in | 1.27 mm | Gold | Gold | UL94 V-0 | Copper Alloy | All | Flash | 10.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P50E Series

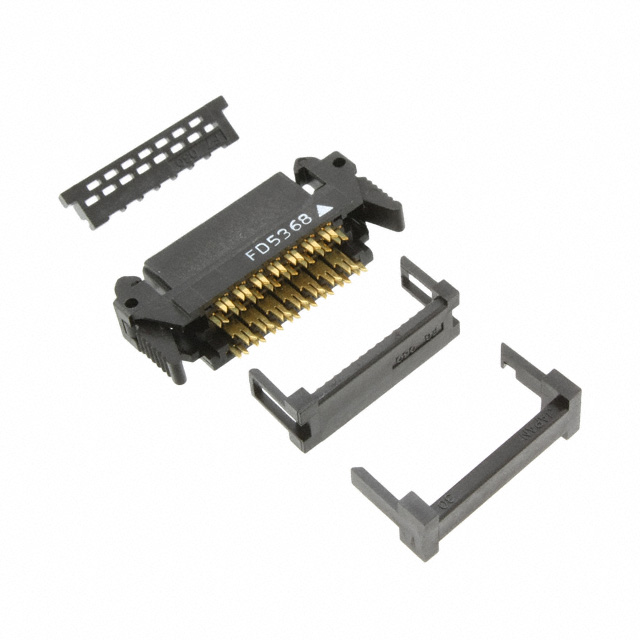

30 Position Rectangular Socket Connector IDC Gold 28 AWG
