CC2652RB1FRGZR

Active

Texas Instruments

SIMPLELINK™ 32-BIT ARM CORTEX-M4F MULTIPROTOCOL 2.4 GHZ WIRELESS MCU WITH CRYSTAL-LESS BAW RESONATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCC2538, CC13xx, and CC26xx Serial Bootloader Interface (Rev. E)What's New in Zigbee 3.0 (Rev. A)+44

CC2652RB1FRGZR

Active

Texas Instruments

SIMPLELINK™ 32-BIT ARM CORTEX-M4F MULTIPROTOCOL 2.4 GHZ WIRELESS MCU WITH CRYSTAL-LESS BAW RESONATOR

Deep-Dive with AI

DocumentsCC2538, CC13xx, and CC26xx Serial Bootloader Interface (Rev. E)What's New in Zigbee 3.0 (Rev. A)+44

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC2652RB1FRGZR

Current - Receiving	7.3 mA
Current - Transmitting [Max]	10.2 mA
Current - Transmitting [Min]	7.9 mA
Data Rate (Max)	2 Mbps
Frequency [Max]	2.48 GHz
Frequency [Min]	2.4 GHz
GPIO	31
Memory Size [custom]	80 kB
Memory Size [custom]	352 kB
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

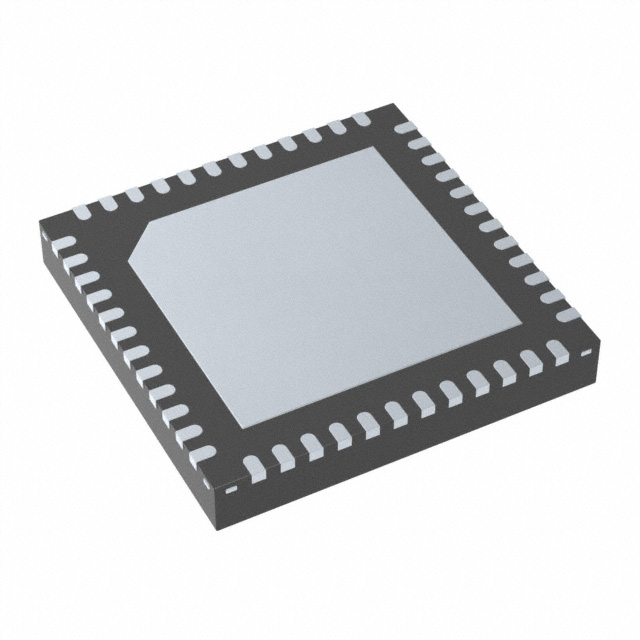

Package / Case	48-VFQFN Exposed Pad
Power - Output	5 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	Bluetooth, 802.15.4
Sensitivity	-102 dBm
Serial Interfaces	I2C, I2S, SPI, UART, JTAG, GPIO, ADC
Supplier Device Package	48-VQFN (7x7)
Type	TxRx + MCU
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.8 V

CC2652RB Series

SimpleLink™ 32-bit Arm Cortex-M4F multiprotocol 2.4 GHz wireless MCU with crystal-less BAW resonator

Part	Power - Output	Frequency [Min]	Frequency [Max]	GPIO	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	RF Family/Standard	Package / Case	Serial Interfaces	Current - Transmitting [Min]	Current - Transmitting [Max]	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Data Rate (Max)	Current - Receiving	Memory Size [custom]	Memory Size [custom]	Type
Texas Instruments CC2652RB1FRGZR	5 dBm	2.4 GHz	2.48 GHz	31	85 °C	-40 °C	-102 dBm	802.15.4, Bluetooth	48-VFQFN Exposed Pad	ADC, GPIO, I2C, I2S, JTAG, SPI, UART	7.9 mA	10.2 mA	Bluetooth v5.0, Thread, Zigbee®	1.8 V	3.8 V	Surface Mount	48-VQFN (7x7)	2 Mbps	7.3 mA	80 kB	352 kB	TxRx + MCU

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.75
		10	$ 6.03
		25	$ 5.43
		100	$ 4.94
		250	$ 4.46
		500	$ 4.00
		1000	$ 3.38
	Digi-Reel®	1	$ 6.75
		10	$ 6.03
		25	$ 5.43
		100	$ 4.94
		250	$ 4.46
		500	$ 4.00
		1000	$ 3.38
	Tape & Reel (TR)	2500	$ 3.21
Texas Instruments	LARGE T&R	1	$ 4.39
		100	$ 3.58
		250	$ 2.81
		1000	$ 2.39

Description

General part information

CC2652RB Series

The SimpleLink™CC2652RB device is the industry’s first multiprotocol 2.4 GHz wireless crystal-less microcontroller (MCU) with integrated TI Bulk Acoustic Wave (BAW) resonator technology supportingThread,Zigbee,Bluetooth5.2 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, including the TI 15.4-Stack (2.4 GHz), andconcurrent multiprotocoloperation through the Dynamic Multiprotocol Manager (DMM) software driver. Integrated BAW resonator technologyeliminates the need for external crystalswithout compromising latency or frequency stability. The device is optimized for low-power wireless communication and advanced sensing inbuilding security systems,HVAC,medical,power tool,wired networking,portable electronics,home theater & entertainment, andconnected peripheralsmarkets.

The highlighted features of TI Bulk Acoustic Wave (BAW) resonator technology include:

The highlighted features of theSimpleLink™ MCU platforminclude:
