74LVC1G80 Series

Single Positive-Edge-Triggered D-Type Flip-Flop

Catalog

Single Positive-Edge-Triggered D-Type Flip-Flop

Part	Output Type	Number of Bits per Element	Type	Max Propagation Delay	Max CL	Number of Elements	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Function	Package Width	Package Name	Package Length	Trigger Type	Mounting Type	Input Capacitance	Current - Quiescent (Iq)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Current - Output High	Current - Output Low	Clock Frequency	Grade	Qualification
Texas Instruments SN74LVC1G80YEPR	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	85 °C	-40 °C	5-XFBGA DSBGA	Standard	0.9 mm	5-DSBGA	1.4 mm	Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80YZAR	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	85 °C	-40 °C	5-XFBGA DSBGA	Standard	0.9 mm	5-DSBGA	1.4 mm	Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80DBVR	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	125 °C	-40 °C		Standard		SOT-23-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80DBVRE4	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	125 °C	-40 °C		Standard		SOT-23-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80DCKRG4	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353	Standard		SC-70-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80YZPR	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	85 °C	-40 °C	5-XFBGA DSBGA	Standard	0.9 mm	5-DSBGA	1.4 mm	Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80DBVRG4	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	125 °C	-40 °C		Standard		SOT-23-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80QDCKRQ1	Inverted	1 bits	D-Type	5.5 ns	50 pF	1	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353	Standard		SC-70-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz	Automotive	AEC-Q100
Texas Instruments SN74LVC1G80DCKRE4	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353	Standard		SC-70-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz
Texas Instruments SN74LVC1G80DBVTG4	Inverted	1 bits	D-Type	4.5 ns	50 pF	1	125 °C	-40 °C		Standard		SOT-23-5		Positive Edge	Surface Mount	3.5 pF	10 µA	1.65 V	5.5 V	32 mA	32 mA	160 MHz

Catalog

Single Positive-Edge-Triggered D-Type Flip-Flop

Description

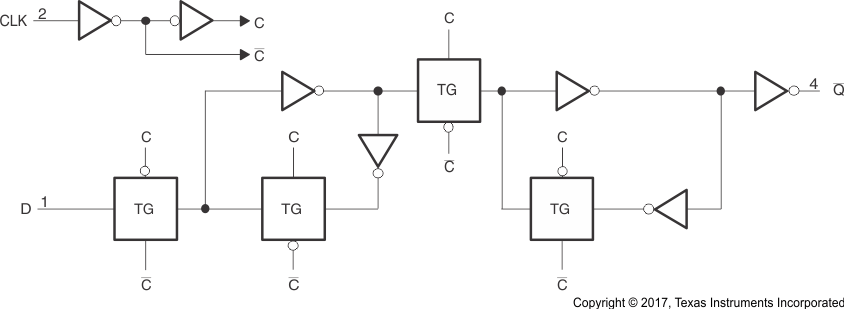

The SN74LVC1G80-Q1 device is an automotive AEC-Q100 qualified, single positive-edge-triggered D-type flip-flop that is designed for 1.65-V to 5.5-V VCCoperation. When data at the data (D) input meets the setup time requirement, the data is transferred to theQoutput on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output. This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device. The SN74LVC1G80-Q1 device is an automotive AEC-Q100 qualified, single positive-edge-triggered D-type flip-flop that is designed for 1.65-V to 5.5-V VCCoperation. When data at the data (D) input meets the setup time requirement, the data is transferred to theQoutput on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output. This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.
