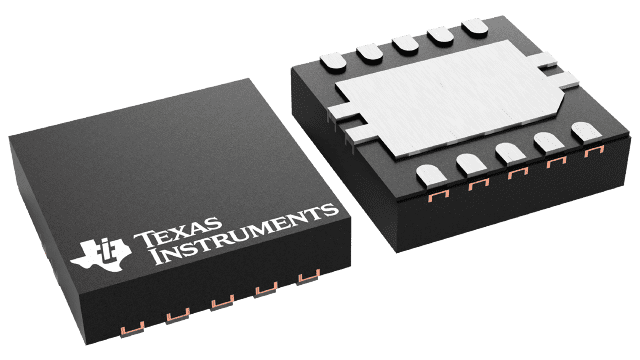

LM53601-Q1 Series

Catalog

AUTOMOTIVE 3.5-V TO 36-V, 1-A SYNCHRONOUS 2.1-MHZ STEP-DOWN CONVERTER

Part	Voltage - Input (Max)	Function	Synchronous Rectifier	Package / Case	Output Type	Output Configuration	Mounting Type	Voltage - Input (Min)	Frequency - Switching	Operating Temperature (Min)	Operating Temperature (Max)	Current - Output	Qualification	Grade	Package Length	Package Name	Package Width	Topology	Voltage - Output (Min/Fixed)	Number of Outputs	Voltage - Output (Max)
Texas Instruments LM536013QUDSXRQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.55 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	3.3 V	1
Texas Instruments LM536013QDSXRQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	3.3 V	1
Texas Instruments LM536015QDSXTQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	5 V	1
Texas Instruments LM536015QDSXRQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	5 V	1
Texas Instruments LM53601LQDSXRQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	5 V	1
Texas Instruments LM53601NQDSXTQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	3.3 V	1
Texas Instruments LM53601MQDSXRQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Adjustable	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	3.3 V	1	6 V
Texas Instruments LM53601LQDSXTQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	5 V	1
Texas Instruments LM53601MQDSXTQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Adjustable	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	3.3 V	1	6 V
Texas Instruments LM536013QDSXTQ1	36 V	Step-Down	Yes	10-WFDFN Exposed Pad	Fixed	Positive	Surface Mount	3.8 V	2.1 MHz	-40 °C	150 °C	1 A	AEC-Q100	Automotive	3 mm	10-WSON	3 mm	Buck	3.3 V	1
