DP83816 Series

10/100 Mbps integrated PCI Ethernet media access controller & physical layer (MacPhyter-II)

Catalog

10/100 Mbps integrated PCI Ethernet media access controller & physical layer (MacPhyter-II)

Part	Operating Temperature (Max)	Operating Temperature (Min)	Standards	Current - Supply	Package Length	Package Name	Package Width	Function	Interface	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Protocol	Supplied Contents	Contents	Utilized IC / Part	Type
Texas Instruments DP83816AVNG	70 °C	0 °C	10/100 Base-T/TX PHY IEEE 802.3	116 mA	20 mm	144-LQFP	20 mm	Controller	PCI	144-LQFP	3.6 V	3 V	Ethernet
Texas Instruments DP83816AVNG-EX/NOPB	85 °C	0 °C	10/100 Base-T/TX PHY IEEE 802.3	116 mA	20 mm	144-LQFP	20 mm	Controller	PCI	144-LQFP	3.6 V	3 V	Ethernet
Texas Instruments DP83816-MAAP								Ethernet						Board(s)	Board	DP83816	Interface
Texas Instruments DP83816AVNG/NOPB	85 °C	0 °C	10/100 Base-T/TX PHY IEEE 802.3	116 mA	20 mm	144-LQFP	20 mm	Controller	PCI	144-LQFP	3.6 V	3 V	Ethernet
Texas Instruments DP83816AVNG/63SN	70 °C	0 °C	10/100 Base-T/TX PHY IEEE 802.3	116 mA	20 mm	144-LQFP	20 mm	Controller	PCI	144-LQFP	3.6 V	3 V	Ethernet
Texas Instruments DP83816AVNG	85 °C	0 °C	10/100 Base-T/TX PHY IEEE 802.3	116 mA	20 mm	144-LQFP	20 mm	Controller	PCI	144-LQFP	3.6 V	3 V	Ethernet

Catalog

10/100 Mbps integrated PCI Ethernet media access controller & physical layer (MacPhyter-II)

Description

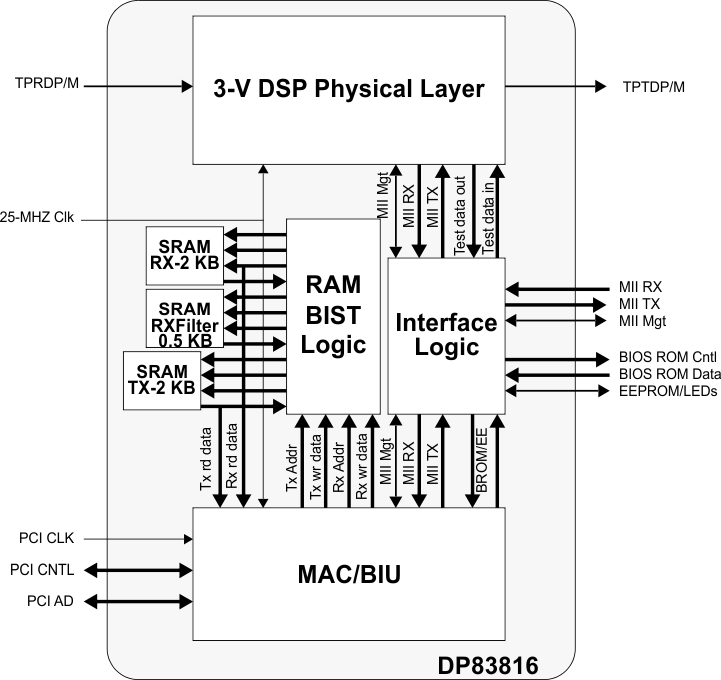

The DP83816 device is a single-chip 10/100 Mb/s ethernet controller for the PCI bus. It is targeted at low-cost, high-volume PC motherboards, adapter cards, and embedded systems. The DP83816 device fully implements the V2.2 33-MHz PCI bus interface for host communications with power management support. Packet descriptors and data are transferred via bus-mastering, reducing the burden on the host CPU. The DP83816 device can support full-duplex 10/100 Mb/s transmission and reception with minimum interframe gap. The DP83816 device is a single-chip 10/100 Mb/s ethernet controller for the PCI bus. It is targeted at low-cost, high-volume PC motherboards, adapter cards, and embedded systems. The DP83816 device fully implements the V2.2 33-MHz PCI bus interface for host communications with power management support. Packet descriptors and data are transferred via bus-mastering, reducing the burden on the host CPU. The DP83816 device can support full-duplex 10/100 Mb/s transmission and reception with minimum interframe gap.
