TR1412PMS1NB
ActiveCIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, CABLE MOUNT PLUG, 12 CONTACTS, NYLON (POLYAMIDE) BODY
TR1412PMS1NB
ActiveCIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, CABLE MOUNT PLUG, 12 CONTACTS, NYLON (POLYAMIDE) BODY
Description
General part information
TR141 Series

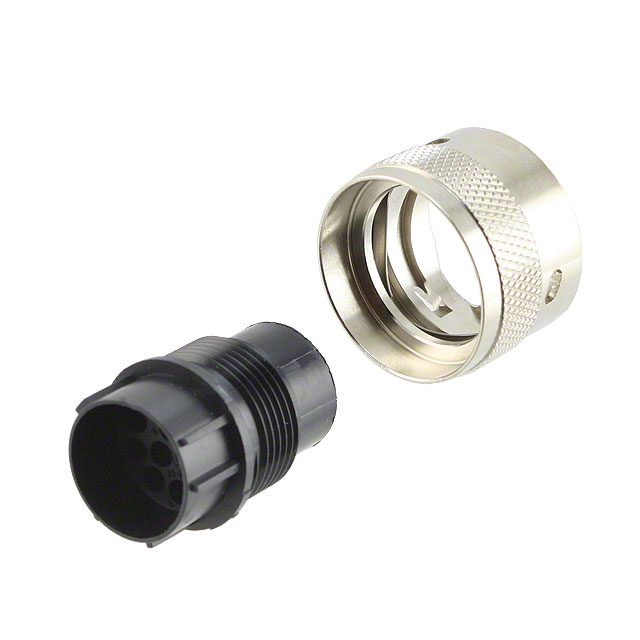

The TR1412PMS1NB is a 12-way Trident Ringlock Circular Connector with nylon connector body and nickel-plated copper alloy coupling ring, accepts male contacts. It uses a metal bayonet coupling system for quick and reliable connections and thermoplastic bodies for low installed cost. The connector is available in several sizes ranging from 4 to 48 circuits for signals of up to 13A or coax. With the addition of a cable clamp, the connectors can be water sealed to meet IP65.
Technical Specifications
Parameters and characteristics for this part
| Specification | TR1412PMS1NB |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Solder Cup, Crimp |
| Fastening Type | Detent Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Keyed |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 14 mm |
| Shell Size - Insert Width | 12 mm |
| Shielding | Unshielded |
| Type | For Male Pins |
