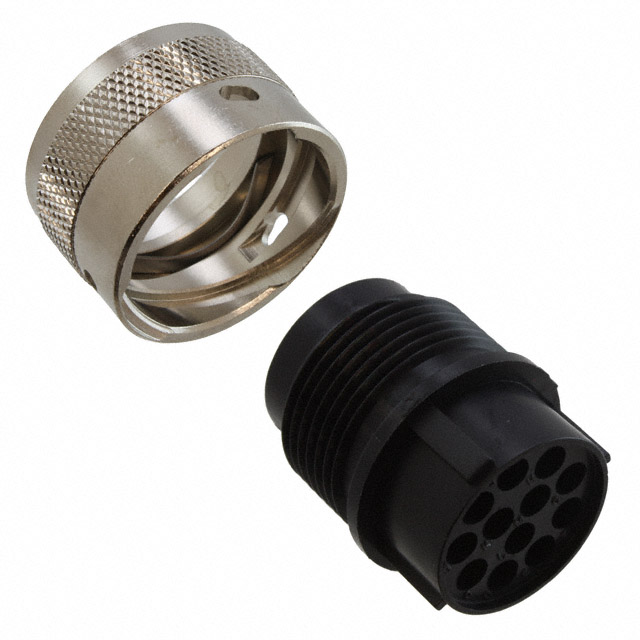

Specification	TR1412PFS1NB

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Detent Lock
Features	Coupling Nut
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	12 mm
Shielding	Unshielded
Type	For Female Sockets

TR141 Series

Part	Material Flammability Rating	Fastening Type	Shielding	Type	Features	Shell Material	Orientation	Shell Size - Insert Width	Shell Size - Insert Length	Contact Type	Mounting Type	Connector Type	Number of Positions	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Note	Mounting Feature	Ingress Protection IP Rating	Ingress Protection Description
ITT Cannon, LLC TR1412PFS1NB	UL94 V-0	Detent Lock	Unshielded	For Female Sockets	Coupling Nut	Nylon Polyamide (PA)	Keyed	12 mm	14 mm	Crimp Solder Cup	Free Hanging (In-Line)	Plug Housing	12	Black	-55 °C	105 °C	Circular	Contacts Not Included
ITT Cannon, LLC TR1412RFH1NB	UL94 V-0	Detent Lock	Unshielded	For Female Sockets		Nylon Polyamide (PA)	Keyed	12 mm	14 mm	Crimp Solder Solder Cup	Panel Mount	Receptacle Housing	12	Black	-55 °C	105 °C	Circular	Contacts Not Included	Flange	IP65	Dust Tight Water Resistant
ITT Cannon, LLC TR1412PMS1NB	UL94 V-0	Detent Lock	Unshielded	For Male Pins	Coupling Nut	Nylon Polyamide (PA)	Keyed	12 mm	14 mm	Crimp Solder Cup	Free Hanging (In-Line)	Plug Housing	12	Black	-55 °C	105 °C	Circular	Contacts Not Included
