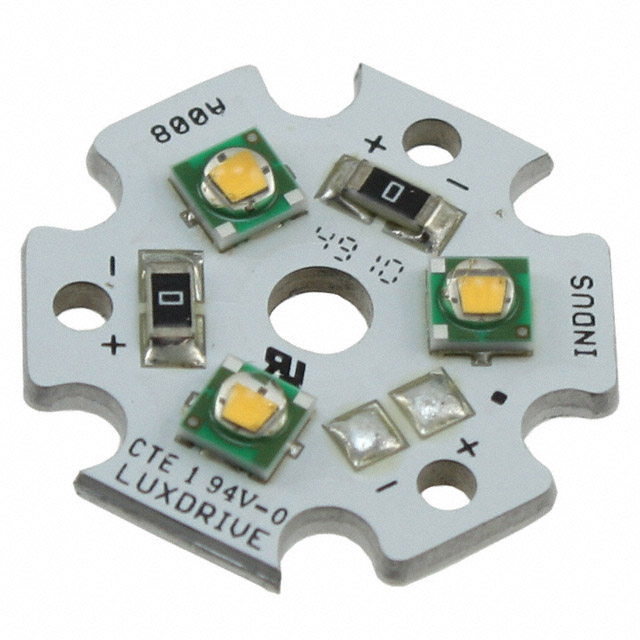

Specification	A008-EW830-Q2

CCT (K)	3000 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index) (Typ)	80
Current - Max	700 mA
Current - Test	350 mA
Height	3.75 mm
Lens Type	Domed
Size / Dimension Length	19.9 mm
Size / Dimension Width	19.9 mm
Type	LED Module

A008-E Series

Part	Current - Test	Size / Dimension Width	Size / Dimension Length	Configuration	Current - Max	Color	Type	Lens Type	Height	Temperature - Test	CCT (K)	Luminous Flux (Typical)	CRI (Color Rendering Index) (Typ)
LEDdynamics Inc. A008-ERGB0-00	350 mA	19.9 mm	19.9 mm	Starboard	700 mA	Blue (RGB) Green Red	LED Module	Domed	3.75 mm
LEDdynamics Inc. A008-EROY0-16	350 mA	19.9 mm	19.9 mm	Starboard	700 mA	Blue	LED Module	Domed	3.75 mm
LEDdynamics Inc. A008-EW750-Q4	350 mA	19.9 mm	19.9 mm	Starboard	700 mA	Cool White	LED Module	Domed	3.75 mm	25 °C	5000 K	315 lm	75
LEDdynamics Inc. A008-EW830-Q2	350 mA	19.9 mm	19.9 mm	Starboard	700 mA	Warm White	LED Module	Domed	3.75 mm		3000 K		80
