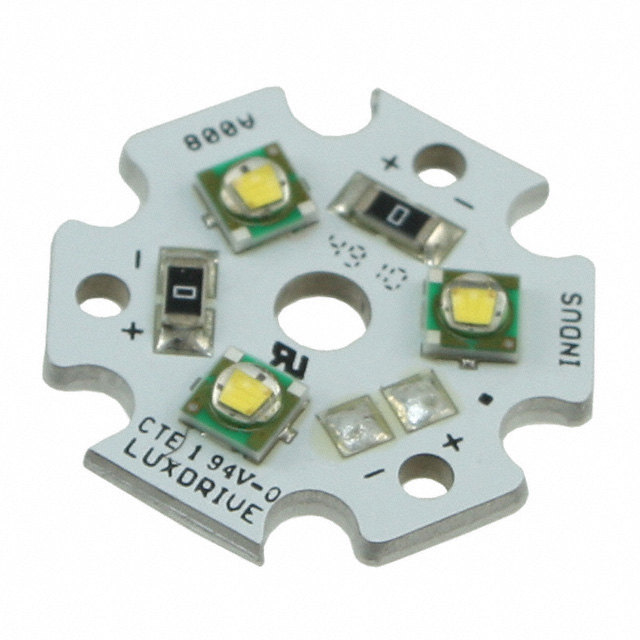

A008-EW750-Q4

Obsolete

LEDdynamics Inc.

LED MOD INDUS STARBRD 5000K

Search across all available documentation for this part.

Obsolete

LEDdynamics Inc.

LED MOD INDUS STARBRD 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	A008-EW750-Q4

CCT (K)	5000 K
Color	Cool, White
Configuration	Starboard
Current - Max [Max]	700 mA
Current - Test	350 mA
Height [z]	3.75 mm
Lens Type	Domed
Luminous Flux @ Current/Temperature	315 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Type	LED Module

Part	Color	Lens Type	Type	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Configuration	Current - Max [Max]	Height [z]	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)
LEDdynamics Inc. A008-ERGB0-00	Blue Green Red	Domed	LED Module	19.9 mm	19.9 mm	350 mA	Starboard	700 mA	3.75 mm
LEDdynamics Inc. A008-EW750-Q4	Cool White	Domed	LED Module	19.9 mm	19.9 mm	350 mA	Starboard	700 mA	3.75 mm	315 lm	5000 K
LEDdynamics Inc. A008-EW830-Q2	Warm White	Domed	LED Module	19.9 mm	19.9 mm	350 mA	Starboard	700 mA	3.75 mm			80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Indus Star™ White, Cool Starboard
