M80-4T10805F1-02-321-00-000
ActiveHarwin Inc.

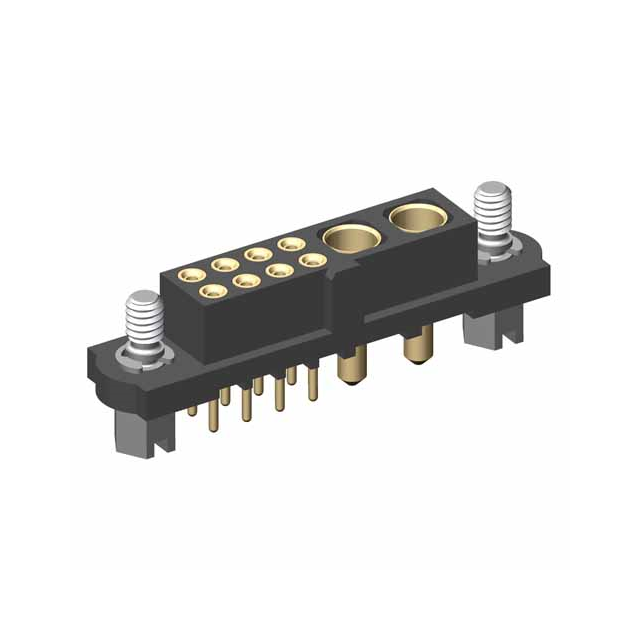

8+2 POS. FEMALE SIGNAL+POWER VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-4T10805F1-02-321-00-000
ActiveHarwin Inc.
8+2 POS. FEMALE SIGNAL+POWER VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4T10805F1-02-321-00-000 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Finish Thickness - Post | 0.3 µm |
| Contact Finish Thickness - Post | 12 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Features | Polarizing Key |
| Insulation Color | Black |
| Insulation Height | 0.205 in |
| Insulation Height | 5.2 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Voltage Rating | 800 VAC |
M80-4T1 Series
| Part | Applications | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Number of Rows | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Material | Insulation Color | Mated Stacking Heights | Contact Type | Contact Finish - Post | Style | Features | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Termination | Current Rating (Amps) | Number of Positions | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Material | Insulation Height | Insulation Height | Contact Shape | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Automotive General Purpose Military | 0.118 in | 3 mm | All | 2 | Receptacle | 12 µin | 0.3 µm | UL94 V-0 | Beryllium Copper | Black | 7.3 mm 7.55 mm | Female Socket | Tin | Board to Board Cable | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold | 0.079 in | 2 mm | -55 °C | 125 °C | Through Hole | 137.8 Áin | 3.5 Ám | 800 V | Solder | 2.2 A | 20 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.205 in | 5.2 mm | Circular | |
Harwin Inc. | Automotive General Purpose Military | All | 2 | Receptacle | 12 µin | 0.3 µm | UL94 V-0 | Beryllium Copper Brass | Black | 7.3 mm 7.55 mm | Female Socket | Tin | Board to Board Cable | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold | 0.079 in | 2 mm | -55 °C | 125 °C | Through Hole | 137.8 Áin | 3.5 Ám | 800 V | Solder | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.205 in | 5.2 mm | Circular | 16 | ||||
Harwin Inc. | Automotive General Purpose Military | 0.118 in | 3 mm | All | 2 | Receptacle | 12 µin | 0.3 µm | UL94 V-0 | Beryllium Copper | Black | 7.3 mm 7.55 mm | Female Socket | Tin | Board to Board Cable | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold | 0.079 in | 2 mm | -55 °C | 125 °C | Through Hole | 137.8 Áin | 3.5 Ám | 800 V | Solder | 2.2 A | 50 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.205 in | 5.2 mm | Circular | |
Harwin Inc. | 0.118 in | 3 mm | All | Receptacle | 12 µin | 0.3 µm | UL94 V-0 | Copper Alloy | Black | Female Socket | Gold | Polarizing Key | Gold | -55 °C | 125 °C | Through Hole | 12 µin | 0.3 µm | 800 VAC | Solder | 3 A | 10 | Polyphenylene Sulfide (PPS) Glass Filled | 0.205 in | 5.2 mm | Circular | |||||||||
Harwin Inc. | Automotive General Purpose Military | 0.118 in | 3 mm | All | 2 | Receptacle | 12 µin | 0.3 µm | UL94 V-0 | Beryllium Copper | Black | 7.3 mm 7.55 mm | Female Socket | Tin | Board to Board Cable | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold | 0.079 in | 2 mm | -55 °C | 125 °C | Through Hole | 137.8 Áin | 3.5 Ám | 800 V | Solder | 2.2 A | 14 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.205 in | 5.2 mm | Circular | |
Harwin Inc. | Automotive General Purpose Military | 0.118 in | 3 mm | All | 2 | Receptacle | 12 µin | 0.3 µm | UL94 V-0 | Beryllium Copper | Black | 7.3 mm 7.55 mm | Female Socket | Tin | Board to Board Cable | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold | 0.079 in | 2 mm | -55 °C | 125 °C | Through Hole | 137.8 Áin | 3.5 Ám | 800 V | Solder | 2.2 A | 30 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.205 in | 5.2 mm | Circular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 10 | $ 36.58 | |
| 50 | $ 32.73 | |||
| 100 | $ 31.66 | |||
| 250 | $ 29.95 | |||
| 500 | $ 29.09 | |||
| 1000 | $ 28.45 | |||
Description
General part information
M80-4T1 Series
10 Position Receptacle Connector Through Hole Gold
