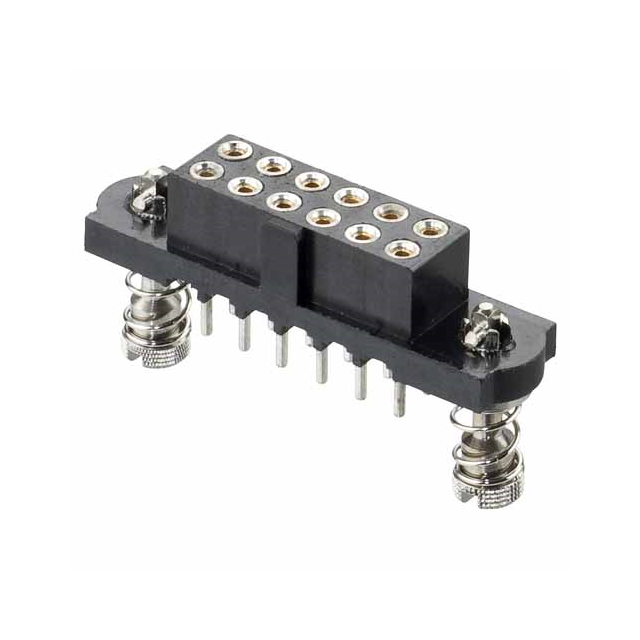

M80-4T15042FD
ActiveHarwin Inc.
25+25 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. 101LOK ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-4T15042FD
ActiveHarwin Inc.
25+25 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. 101LOK ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4T15042FD |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Finish Thickness - Post | 137.8 Áin |
| Contact Finish Thickness - Post | 3.5 Ám |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2.2 A |
| Features | Polarizing Key, Mounting Flange, Jackscrews, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 0.205 in |
| Insulation Height | 5.2 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 7.55 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-4T1 Series
50 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
