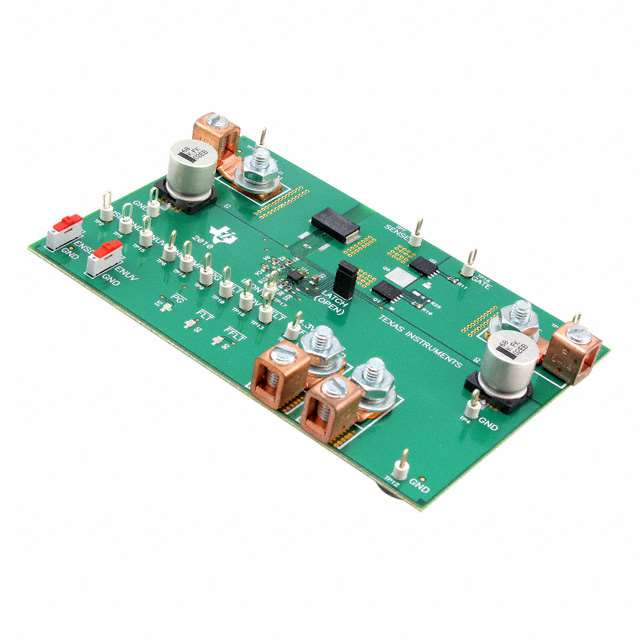

TPS24720EVM-001
ActiveEVAL MODULE FOT TPS24720
Deep-Dive with AI
Search across all available documentation for this part.
TPS24720EVM-001
ActiveEVAL MODULE FOT TPS24720
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS24720EVM-001 | TPS24720 Series |
|---|---|---|
| Applications | - | General Purpose |
| Current - Supply | - | 1 mA |
| Internal Switch(s) | - | False |
| Mounting Type | - | Surface Mount |
| Number of Channels | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Programmable Features | - | Fault Timeout, UVLO, Latched Fault, OVP, Auto Retry, Current Limit |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-VQFN (3x3) |
| Type | Power Management | Hot Swap Controller, Monitor, Power Management |
| Utilized IC / Part | TPS24720 | TPS24720 |
| Voltage - Supply | - | 18 V |
| Voltage - Supply | - | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS24720 Series
2.5-V to 18-V hot swap controller with power limiting and current monitoring
| Part | Package / Case | Internal Switch(s) | Current - Supply | Applications | Programmable Features | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Number of Channels [custom] | Mounting Type | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS24720RGTRThe TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control. | 16-VFQFN Exposed Pad | 1 mA | General Purpose | Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, UVLO | -40 °C | 85 °C | 16-VQFN (3x3) | 18 V | 2.5 V | Hot Swap Controller, Monitor | 1 | Surface Mount | |||
Texas Instruments TPS24720RGTTThe TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control. | 16-VFQFN Exposed Pad | 1 mA | General Purpose | Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, UVLO | -40 °C | 85 °C | 16-VQFN (3x3) | 18 V | 2.5 V | Hot Swap Controller, Monitor | 1 | Surface Mount | |||
Power Management | Board(s) | TPS24720 |
Description
General part information
TPS24720 Series
The TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows use of smaller FETs while improving system reliability. Power good, Fault, FET Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The TPS24720 is an easy-to-use, full-featured protection device for 2.5-V to 18-V power rails. This hot-swap controller drives an external N-channel MOSFET, while protecting source, load and external MOSFET against multiple potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
