627-M15-622-GN1

Active

EDAC Inc.

VERTICAL MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

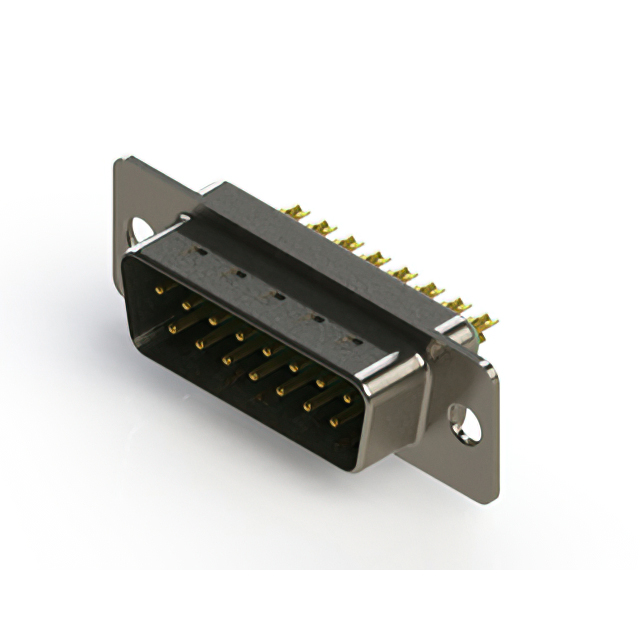

627-M15-622-GN1

Active

EDAC Inc.

VERTICAL MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-M15-622-GN1

Color	Green
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

627-M15 Series

...

Part	Contact Material	Current Rating (Amps)	Mounting Type	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Dielectric Material	Contact Finish	Color	Number of Rows	Connector Style	Termination	Features	Shell Size, Connector Layout	Number of Positions	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Contact Finish Thickness
EDAC Inc. 627-M15-320-BN6	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	Black	2	D-Sub	Solder	Board Lock Grounding Indents Shielded	2	15	Nickel Plated Steel	15 µin	0.38 µm	Male Pins Plug	Signal
EDAC Inc. 627-M15-223-WN6	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	White	2	D-Sub	Solder	Board Lock Grounding Indents Shielded	2	15	Nickel Plated Steel			Male Pins Plug	Signal	Flash
EDAC Inc. 627-M15-320-WN3	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	White	2	D-Sub	Solder	Grounding Indents Shielded	2	15	Nickel Plated Steel	15 µin	0.38 µm	Male Pins Plug	Signal
EDAC Inc. 627-M15-622-GN1	Copper Alloy	5 A	Free Hanging (In-Line)	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	Green	2	D-Sub		Grounding Indents Shielded	2	15	Nickel Plated Steel	30 Áin	0.76 Ám	Male Pins Plug	Signal
EDAC Inc. 627-M15-323-LN5	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	Blue	2	D-Sub	Solder	Board Lock Grounding Indents Shielded	2	15	Nickel Plated Steel	15 µin	0.38 µm	Male Pins Plug	Signal
EDAC Inc. 627-M15-322-WT1	Copper Alloy	5 A	Free Hanging (In-Line)	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	White	2	D-Sub		Grounding Indents Shielded	2	15		15 µin	0.38 µm	Male Pins Plug	Signal
EDAC Inc. 627-M15-320-BT2	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	Black	2	D-Sub	Solder	Grounding Indents Shielded	2	15		15 µin	0.38 µm	Male Pins Plug	Signal
EDAC Inc. 627-M15-222-GT1	Copper Alloy	5 A	Free Hanging (In-Line)	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	Green	2	D-Sub		Grounding Indents Shielded	2	15				Male Pins Plug	Signal	Flash
EDAC Inc. 627-M15-620-WT6	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	White	2	D-Sub	Solder	Board Lock Grounding Indents Shielded	2	15		30 Áin	0.76 Ám	Male Pins Plug	Signal
EDAC Inc. 627-M15-620-WT4	Copper Alloy	5 A	Through Hole	4-40 Board Side	-55 °C	125 °C	UL94 V-0	Polyamide (PA6T) Nylon 6T	Gold	White	2	D-Sub	Solder	Grounding Indents Shielded	2	15		30 Áin	0.76 Ám	Male Pins Plug	Signal
