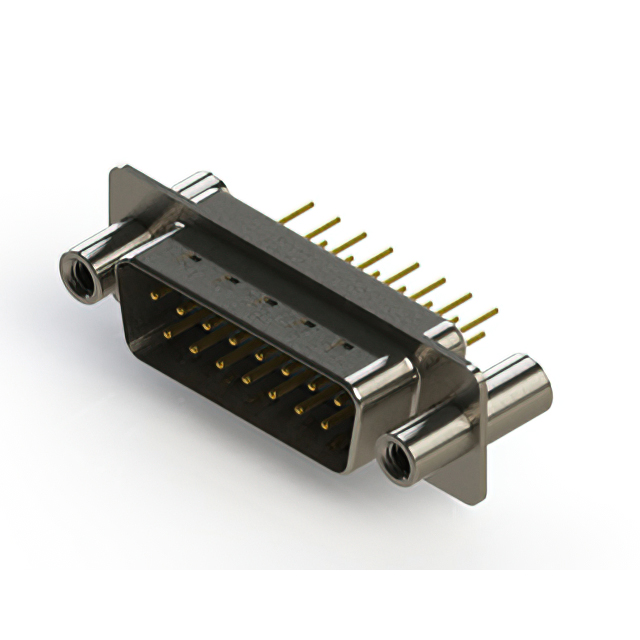

627-M15-620-WT4
ActiveEDAC Inc.
VERTICAL MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627-M15-620-WT4
ActiveEDAC Inc.
VERTICAL MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-M15-620-WT4 |
|---|---|
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Shielded |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
627-M15 Series
...
| Part | Contact Material | Current Rating (Amps) | Mounting Type | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Dielectric Material | Contact Finish | Color | Number of Rows | Connector Style | Termination | Features | Shell Size, Connector Layout | Number of Positions | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | Black | 2 | D-Sub | Solder | Board Lock Grounding Indents Shielded | 2 | 15 | Nickel Plated Steel | 15 µin | 0.38 µm | Male Pins Plug | Signal | |
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | White | 2 | D-Sub | Solder | Board Lock Grounding Indents Shielded | 2 | 15 | Nickel Plated Steel | Male Pins Plug | Signal | Flash | ||
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | White | 2 | D-Sub | Solder | Grounding Indents Shielded | 2 | 15 | Nickel Plated Steel | 15 µin | 0.38 µm | Male Pins Plug | Signal | |
EDAC Inc. | Copper Alloy | 5 A | Free Hanging (In-Line) | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | Green | 2 | D-Sub | Grounding Indents Shielded | 2 | 15 | Nickel Plated Steel | 30 Áin | 0.76 Ám | Male Pins Plug | Signal | ||
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | Blue | 2 | D-Sub | Solder | Board Lock Grounding Indents Shielded | 2 | 15 | Nickel Plated Steel | 15 µin | 0.38 µm | Male Pins Plug | Signal | |
EDAC Inc. | Copper Alloy | 5 A | Free Hanging (In-Line) | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | White | 2 | D-Sub | Grounding Indents Shielded | 2 | 15 | 15 µin | 0.38 µm | Male Pins Plug | Signal | |||
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | Black | 2 | D-Sub | Solder | Grounding Indents Shielded | 2 | 15 | 15 µin | 0.38 µm | Male Pins Plug | Signal | ||
EDAC Inc. | Copper Alloy | 5 A | Free Hanging (In-Line) | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | Green | 2 | D-Sub | Grounding Indents Shielded | 2 | 15 | Male Pins Plug | Signal | Flash | ||||
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | White | 2 | D-Sub | Solder | Board Lock Grounding Indents Shielded | 2 | 15 | 30 Áin | 0.76 Ám | Male Pins Plug | Signal | ||
EDAC Inc. | Copper Alloy | 5 A | Through Hole | 4-40 Board Side | -55 °C | 125 °C | UL94 V-0 | Polyamide (PA6T) Nylon 6T | Gold | White | 2 | D-Sub | Solder | Grounding Indents Shielded | 2 | 15 | 30 Áin | 0.76 Ám | Male Pins Plug | Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
627-M15 Series
15 Position D-Sub Plug, Male Pins Connector
