73203W 0081000
ActiveBelden Inc.

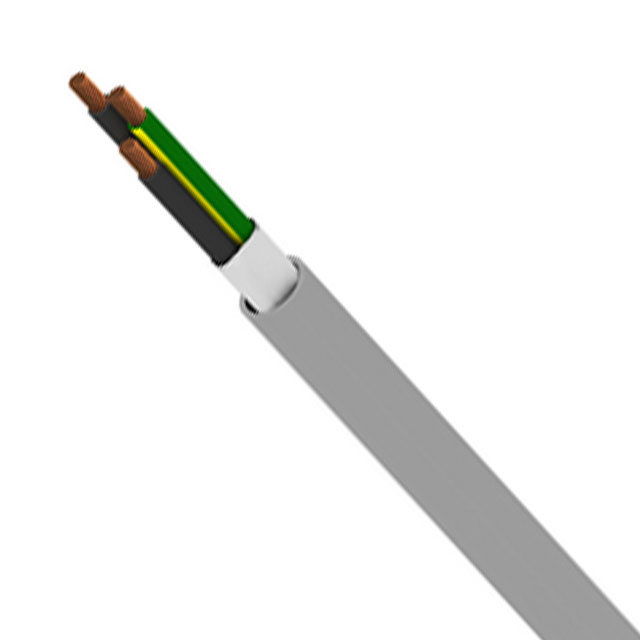

CABLE 3COND 12AWG GRAY FEET
Deep-Dive with AI
Search across all available documentation for this part.
73203W 0081000
ActiveBelden Inc.
CABLE 3COND 12AWG GRAY FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73203W 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 65 |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.436 in |
| Jacket (Insulation) Diameter [diameter] | 11.07 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.067 in |
| Jacket (Insulation) Thickness | 1.702 mm |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Ratings | UL Style 2587 |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 600 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 5.54 | |
| 2 | $ 5.28 | |||
| 3 | $ 5.13 | |||
| 5 | $ 4.95 | |||
| 7 | $ 4.83 | |||
| 10 | $ 4.71 | |||
| 25 | $ 4.41 | |||
| 50 | $ 4.20 | |||
| 100 | $ 3.99 | |||
Description
General part information
73203W Series
3 Conductor Multi-Conductor Cable Gray 12 AWG Enter Number of Feet in Order Quantity
