73203W 008100

Active

Belden Inc.

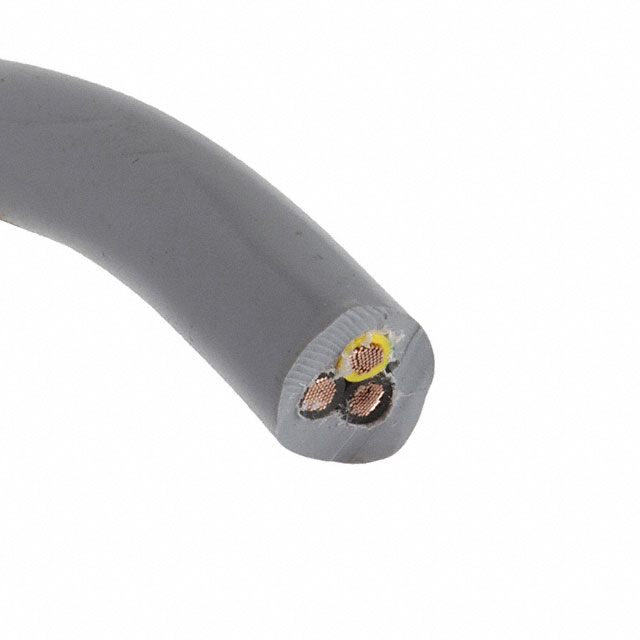

CABLE 3COND 12AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 12AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73203W 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.436 in
Jacket (Insulation) Diameter [diameter]	11.07 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.067 in
Jacket (Insulation) Thickness	1.702 mm
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	12 AWG

Part	Number of Conductors	Conductor Insulation	Features	Jacket Color	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Spool Size	Spool Size	Length
Belden Inc. 73203W 008100	3	Poly-Vinyl Chloride (PVC)	Oil Resistant	Gray	UL Style 2587	0.436 in	11.07 mm	Multi-Conductor	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Copper Bare	30 AWG	65	12 AWG	600 V	0.067 in	1.702 mm
Belden Inc. 73203W 0081000	3	Poly-Vinyl Chloride (PVC)	Oil Resistant	Gray	UL Style 2587	0.436 in	11.07 mm	Multi-Conductor			Poly-Vinyl Chloride (PVC)	Copper Bare	30 AWG	65	12 AWG	600 V	0.067 in	1.702 mm	1000 ft	304.8 m	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 12 AWG 100.0' (30.5m)
